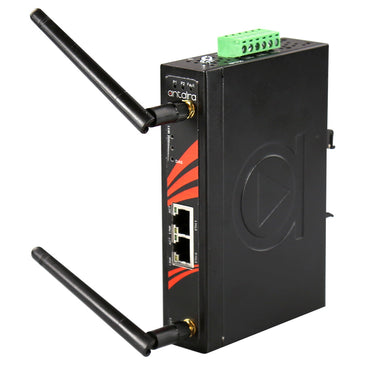

AMS-7131-T | Industrial 802.11a/b/g/n WiFi Access Point/Client/Bridge/Repeater | EOT -35°C - 70°C | Antaira
Industrial 802.11a/b/g/n WiFi Access Point/Client/Bridge/Repeater, EOT -35°C - 70°C
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to AMS-7131-T
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner.jpg?v=1711003870)
![](https://cdn.shopify.com/s/files/1/0877/4530/files/antaira-banner-mob.jpg?v=1711003953)
Documents and manuals
Antaira AMS-7131-T Documents
Overview
Details for AMS-7131-T
Industrial 802.11a/b/g/n WiFi Access Point/Client/Bridge/Repeater | EOT -35°C - 70°C
The AMS-7131-T is a single radio Industrial 802.11a/b/g/n Wireless LAN Access Point capable of link speeds up to 300Mbps.Features
- Industrial 2x2 MIMO
- Supports IEEE 802.11 a/b/g/n
- Supports 2*10/100Base-TX WAN/LAN port
- Tx Power 22 dB for 2.4GHz
- Tx Power 19 bB for 5GHz
- WPA, WPA2, TKIP, AES
- Power Input: 9~48VDC in 4-pin terminal block
- Reverse Polarity Protection
- IP30 Protection
- DIN-Rail or Wall Mountable
- Operating Temperature Range – STD: -35° to 70°C
- 5-Year Warranty
Included
- 2 - 5dB antenna
- AMS-7131-T
- Quick Installation Guide
- Wall mounting bracket set with screws
Specifications
- Ambient Relative Humidity
- 5 to 95%, (non-condensing)
- Antenna
- 2*External Antenna
- Certifications
- FCC, CE
- Dimensions
- 30 x 140 x 95mm (W*H*D)
- EMI
- FCC Part 15 Subpart B;CE EN 55032;EN301489-1/-17;FCC Part 15 Subpart B;CNS13438;AS/NZS CSIPR 32
- EMS
- CE EN 55024;IEC61000-4-2 (ESD);IEC61000-4-3 (RS);IEC61000-4-4 (EFT);IEC61000-4-5 (Surge);IEC61000-4-6 (CS);IEC61000-4-8 (Magnetic Field);IEC61000-4-11
- Encryption Security
- WPA, WPA2, WPA3, WEP, TKIP, AES
- Ethernet Port
- 2*10/100Tx
- Free Fall / Shock / Vibration
- IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6
- Green
- RoHS Compliant
- Housing
- Metal, IP30 Protection
- IEEE
- IEEE 802.11 a/b/g/n;IEEE 802.3 10Base-T Ethernet;IEEE 802.3u 100Base-TX Fast Ethernet
- Input Voltage
- 9~48VDC, Redundant Input
- LED Indicators
- Power, Fault, Wi-Fi Signal, Link, Activity
- Mounting
- DIN-Rail, Wall Mounting
- Operating Temperature
- STD: -10° to 60° C;EOT: -35° to 70° C
- Overload Current Protection
- Present
- Power Connection
- 6-Pin Terminal Block
- Power Consumption
- 8 Watts
- Protocols
- IP, TCP, UDP, ARP, BOOTP, ICMP, HTTP, HTTPS, DNS Proxy, NTP, RADIUS, Dynamic DNS, SNMP
- Reverse Polarity Protection
- Present
- Storage Temperature
- -40°C ~ 90°C
- Warranty
- 5 Years
- Weight
- Unit: 0.60 lb.;Shipping: 1.0 lb.
- WLAN
- Single Radio
- WLAN Operation Mode
- AP/Client/Bridge/Repeater
