AIM1.1 | ANALOG ISOLATION MODULE 1:1 | ACI
Analog Input, Analog Output, Analog Isolation Module, 1:1
Documents and manuals
ACI AIM1.1 Documents
Overview
Details for AIM1.1
ANALOG ISOLATION MODULE 1:1

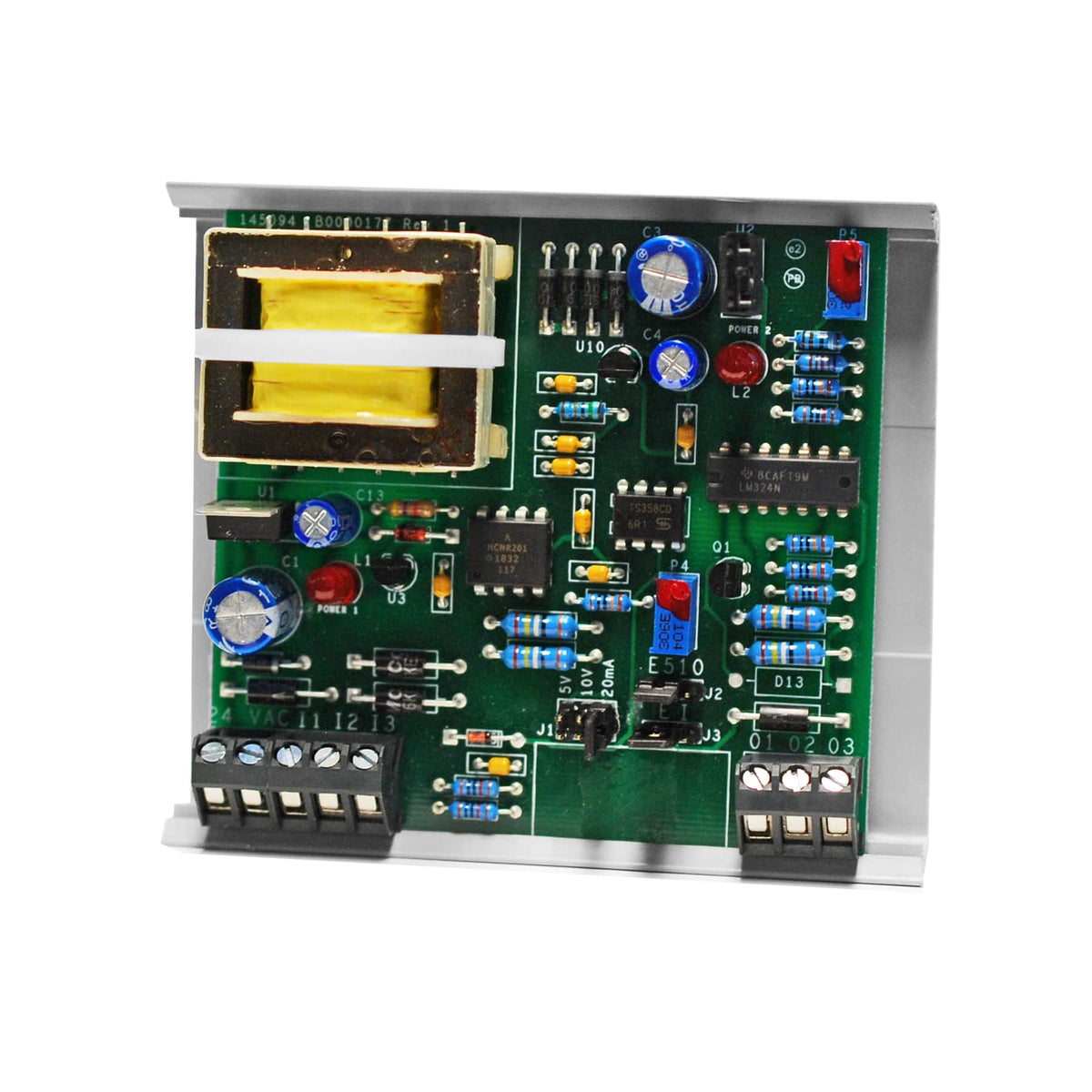

Analog Input to Optically Isolated Analog Output The AIM1.1 optically isolates an analog (voltage or current) input signal from its corresponding output signal. The factory calibrated output is linear and proportional (1:1 ratio) to the input signal. The AIM1.1 will accept a 0 to 5 VDC, 0 to 10 VDC, or 0 to 20 mA input span and output any one of those same ranges. It requires one external 24 VAC isolation transformer with floating secondary for power and has an onboard 24 VAC isolation transformer to supply the isolated output.
Applications: Grounded Electrical Actuator Isolation, Florescent Light Dimmer Isolation, Ground Loop Isolation, Variable Frequency Motor Drive Isolation, General Analog Signal Input and Output Isolation
The AIM1.1 is covered by ACI's Two (2) Year Limited Warranty. The warranty can be found in the front of ACI's Sensors & Transmitters catalog, as well as on ACI's website, www.workaci.com.
Specifications
Item Number | AIM1.1 |
Brand | ACI |
