Documents: X100CBB

Datasheet More Info

X100CBB | CONTROL TRANSFORMER | 100VA | 120/240/277/480-24VAC | CB | FT&DL HUB | Veris

120/240/277/480 VAC Primary 24 VAC Secondary Standard Control Transformer with Circuit Breaker Protection, 2 Hub and Foot, 99 VA

Brand: VerisSKU: X100CBB

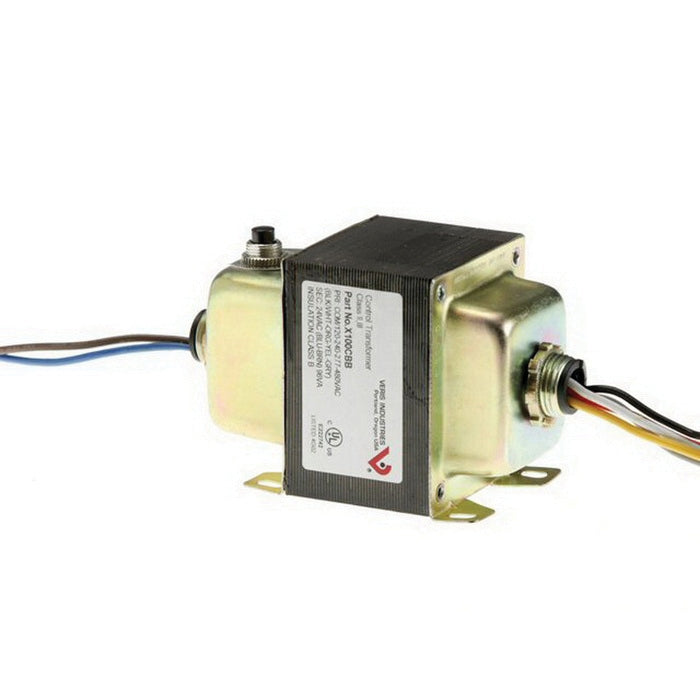

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to X100CBB

Jump to: Overview & Specifications Reviews

Overview Details for X100CBB

Veris X series control transformers are a convenient source of control power for HVAC control and building automation applications. A wide variety of UL-listed transformers are available with single and dual threaded hub mounting options. Multiple current limiting options are available, including a circuit breaker in some models.

Threaded hub options maximize installation flexibility
UL listings for all models simplify panel building requirements
Separated primary and secondary wire

Specifications

Item Number	X100CBB
Brand	Veris
Application	Building Automation Systems
Circuit Breaker	Yes
Current Protection	Circuit Breaker
Hub	Dual
Insulation Class	2
Model	X100CBB
Mounting	2 Hub \| 1 Foot
Operating Temperature	-40 - 149 °F (-40 - 65 °C)
Power Consumption	100 VA
Primary	120V
Primary	240V
Primary	277V
Primary	480V
Product Certification	UL \| CE
Product Type	Transformer
Range	X series
Secondary Voltage AC Nominal	24 VAC
Secondary Voltage AC Range	24 VAC
Secondary	24V
Supply Voltage AC Nominal	120 VAC \| 240 VAC \| 277 VAC \| 480 VAC
upsground	only
VA	100VA
Warranty	5 years
