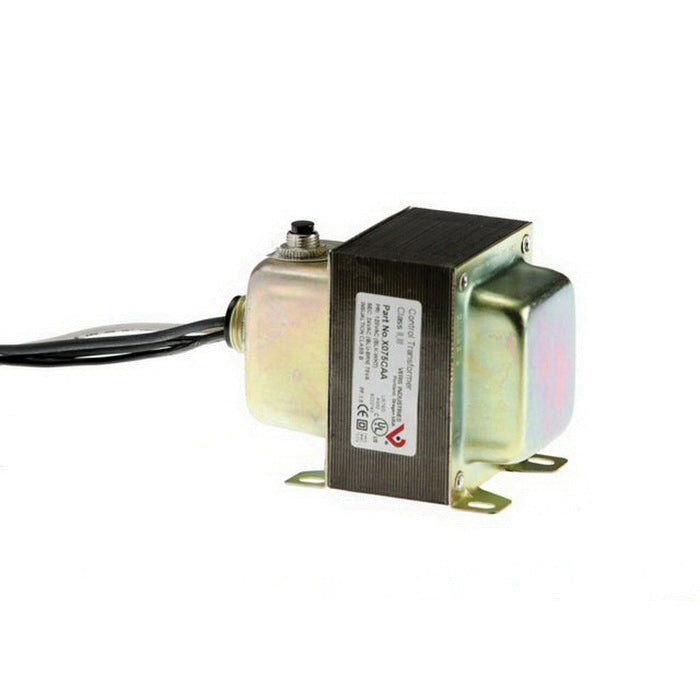

X075CAA | CONTROL TRANSFORMER | 75VA | 120-24VAC | CB | FT&SINGLE HUB | Veris
120 VAC Primary 24 VAC Secondary Standard Control Transformer with Circuit Breaker Protection, 1 Hub and Foot, 75 VA
Documents and manuals
Veris X075CAA Documents
Overview
Details for X075CAA
CONTROL TRANSFORMER | 75VA | 120-24VAC | CB | FT&SINGLE HUB
Features
- UL listings for all models simplify panel building requirements
- Threaded hub options maximize installation flexibility
- One stop shopping...save time by ordering along with other Veris products
Description
Veris X Series Control Transformers are a convenient source of control power for HVAC control and building automation applications. A wide variety of UL-listed transformers are available with single and dual threaded hub mounting options. Multiple current limiting options are available, including a circuit breaker in some models. Save ordering time and purchase order costs when buying other Veris sensors by including transformers in your order.
Applications
- Controller power
- Driving relays and other digital I/O circuits
- Powering sensors
Specifications
Frequency 50/60Hz
Operating Temperature -40° to 65°C (-40° to 149°F)
No Load Voltage 27-28VAC
Hub Style Fits 1/2" electrical k.o.
Wire UL 1015, 18 AWG*
Wire Length 8 inches
Specifications
| Item Number | X075CAA |
| Brand | Veris |
| Application | Building Automation Systems |
| Circuit Breaker | Yes |
| Current Protection | Circuit Breaker |
| Hub | Single |
| Insulation Class | 2 |
| Model | X075CAA |
| Mounting | 1 Hub | 1 Foot |
| Operating Temperature | -40 - 149 °F (-40 - 65 °C) |
| Power Consumption | 75 VA |
| Primary | 120V |
| Product Certification | UL | CE |
| Product Type | Transformer |
| Range | X series |
| Secondary Voltage AC Nominal | 24 VAC |
| Secondary Voltage AC Range | 24 VAC |
| Secondary | 24V |
| Supply Voltage AC Nominal | 120 VAC |
| upsground | only |
| VA | 75VA |
| Warranty | 5 years |
