Documents: X050CEB

Datasheet More Info

X050CEB | CONTROL TRANSFORMER | 50VA | MLT TP-120 Vac | Ft&Dual Hub | Veris

208/240/277/480 VAC Primary 120 VAC Secondary Standard Control Transformer with Circuit Breaker Protection, 2 Hub and Foot, 50 VA

Brand: VerisSKU: X050CEB

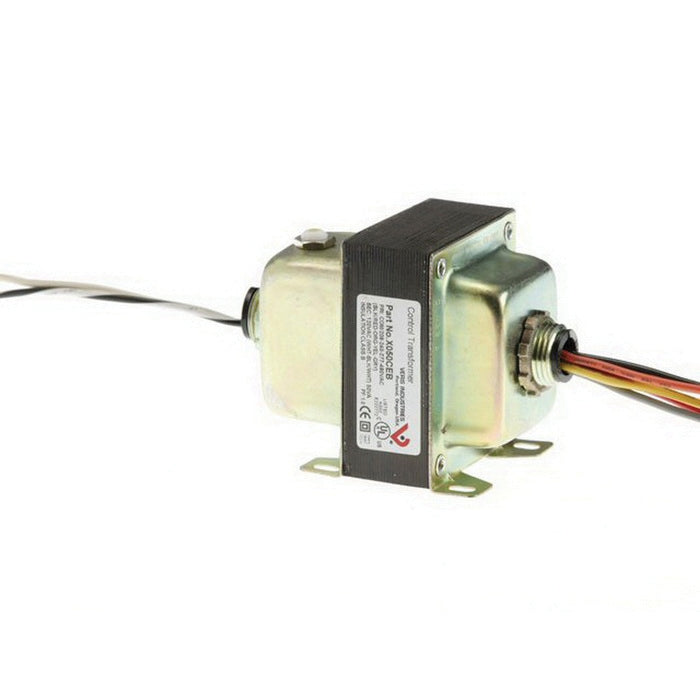

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to X050CEB

Jump to: Overview & Specifications Reviews

Overview Details for X050CEB

Veris X series control transformers are a convenient source of control power for HVAC control and building automation applications. A wide variety of UL-listed transformers are available with single and dual threaded hub mounting options. Multiple current limiting options are available, including a circuit breaker in some models.

Threaded hub options maximize installation flexibility
UL listings for all models simplify panel building requirements
Separated primary and secondary wire

Specifications

Item Number	X050CEB
Brand	Veris
Application	Building Automation Systems
Current Protection	Circuit Breaker
Hub	Dual
Insulation Class	General
Model	X050CEB
Mounting	2 Hub \| 1 Foot
Operating Temperature	-40 - 149 °F (-40 - 65 °C)
Power Consumption	50 VA
Primary	208V
Primary	240V
Primary	277V
Primary	480V
Product Certification	UL \| CE
Product Type	Transformer
Range	X series
Secondary Voltage AC Nominal	25 VAC
Secondary Voltage AC Range	12 VAC
Secondary	120V
Supply Voltage AC Nominal	208 VAC \| 240 VAC \| 277 VAC \| 480 VAC
upsground	only
VA	50VA
Warranty	5 years
