X020AAA | CONTROL TRANSFORMER | 20VA | 120-24VAC | FT&SINGLE HUB MNT | Veris

120 VAC Primary 24 VAC Secondary Standard Control Transformer with Inherent Protection, 1 Hub and Foot, 20 VA

Brand: VerisSKU: X020AAA

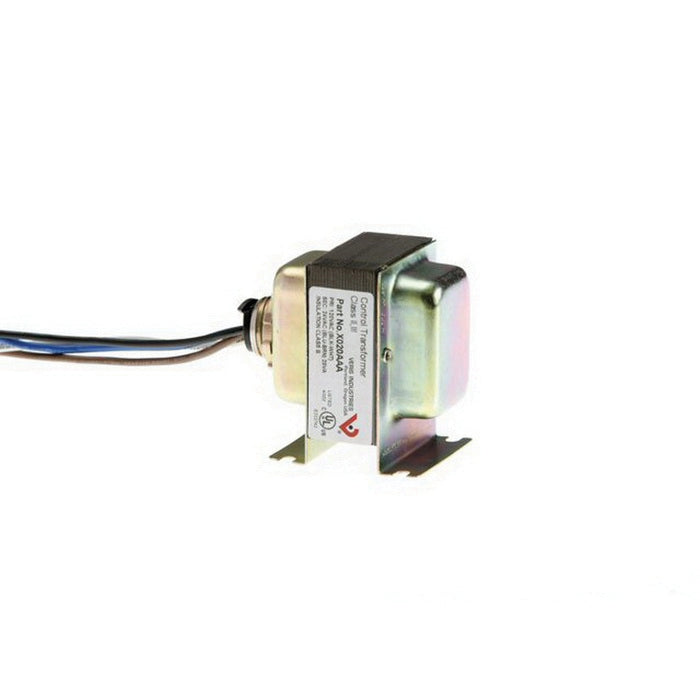

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to X020AAA

Jump to: Overview & Specifications Reviews

Overview Details for X020AAA

Veris X series control transformers are a convenient source of control power for HVAC control and building automation applications. A wide variety of UL-listed transformers are available with single and dual threaded hub mounting options. Multiple current limiting options are available, including a circuit breaker in some models.

Threaded hub options maximize installation flexibility
UL listings for all models simplify panel building requirements

Specifications

Item Number	X020AAA
Brand	Veris
Application	Building Automation Systems
Current Protection	Inherent
Hub	Single
Insulation Class	2
Model	X020AAA
Mounting	1 Hub \| 1 Foot
Operating Temperature	-40 - 149 °F (-40 - 65 °C)
Power Consumption	20 VA
Primary	120V
Product Certification	UL \| CE
Product Type	Transformer
Range	X series
Secondary Voltage AC Nominal	24 VAC
Secondary Voltage AC Range	24 VAC
Secondary	24V
Supply Voltage AC Nominal	120 VAC
upsground	only
VA	20VA
Warranty	5 years
