Documents: VTD2P-UNI

Datasheet More Info

VTD2P-UNI | Veris Time Delay Relay | DPDT | 15A | DIN | Veris

24 to 240 VAC/VDC 10-Function Time Delay Relay, DPDT

Brand: VerisSKU: VTD2P-UNI

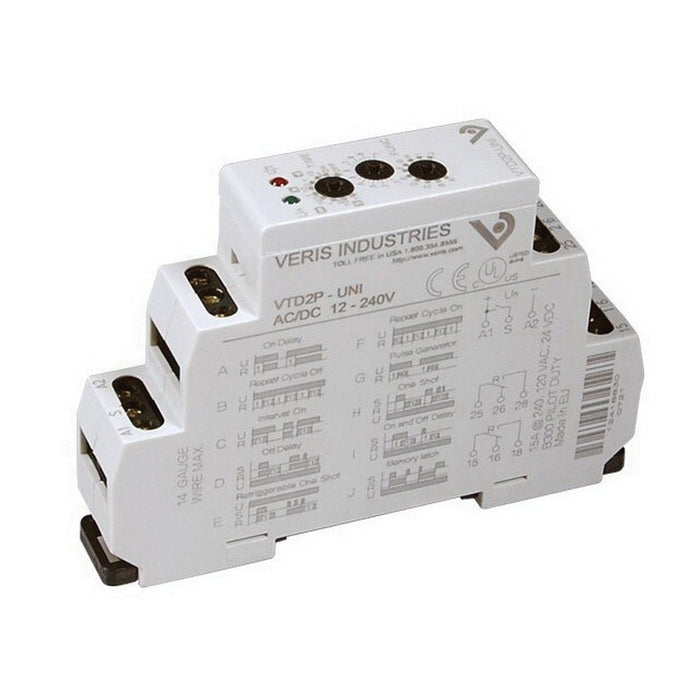

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VTD2P-UNI

Jump to: Overview & Specifications Reviews

Overview Details for VTD2P-UNI

The Veris VTD series are multi-function time delay relays equipped with an external control switch input and designed for easy socket/DIN mounting. The VTD1P-UNI and VTD2P-UNI include the five function as the VTD2P-F50 plus five more, for the most versatile relay available.

VTD2P-UNI models are made with solid-state relays for greater reliability
15% of nominal voltage drop-out voltage threshold

Specifications

Item Number	VTD2P-UNI
Brand	Veris
Application	Building Automation Systems
Model	VTD2P-UNI
Mounting	DIN \| Wall
Operating Temperature	-4 - 131 °F (-20 - 55 °C)
Product Certification	UL \| CE \| CSA
Product Type	Relay
Range	VTD Series
Relay Coil Voltage	24 - 240 VAC/DC
Relay Construction	Mechanical
Relay Contact Ratings	15 A
Relay Poles/Throw	DPDT
Type	Time Delay
Warranty	5 years
