Documents: VS861210AC

Datasheet More Info

VS861210AC | Veris SSR | SPST | 10A | AC | SCR | DIN | Veris

90 to 280 VAC/80 to 140 VDC Solid State Relay, SPST/NO, 10 A

Brand: VerisSKU: VS861210AC

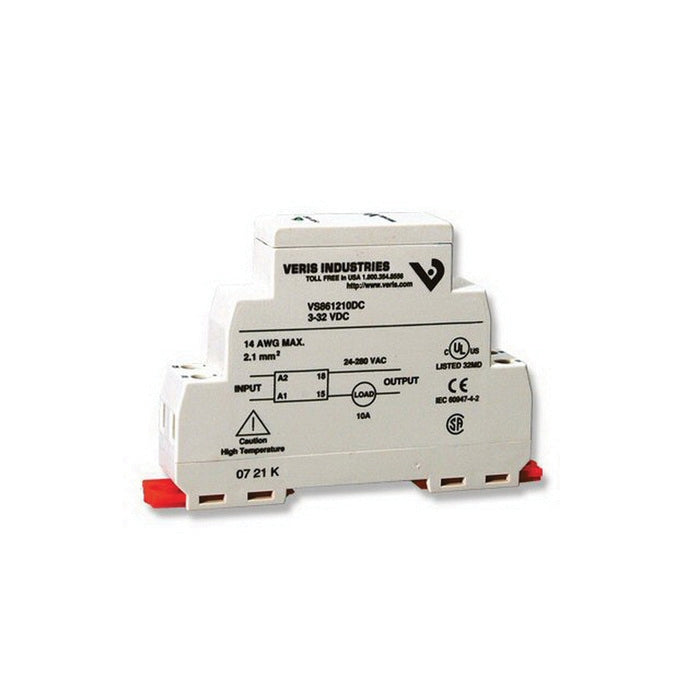

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VS861210AC

Jump to: Overview & Specifications Reviews

Overview Details for VS861210AC

The DIN-mountable VS861 series solid state relay with an internal heat sink is the first complete solid state relay available in a modular package. A SSR (solid state relay) can perform many of the same tasks as an electromechanical relay. The SSR differs in that it contains no moving mechanical parts. It is essentially an electronic device that relies on the electrical, magnetic and optical properties of semiconductors and electrical components to achieve its isolation and relay switching function.

No moving parts to wear or fail
No contact bounce or arcing contacts
Superior performance - fast response time and high frequency of on/off cycling
Reduced EMI
Longer life than electromechanical relays

Specifications

Item Number	VS861210AC
Brand	Veris
Application	Building Automation Systems
Model	VS861210AC
Mounting	DIN \| Wall
Operating Temperature	-22 - 176 °F (-30 - 80 °C)
Product Certification	UL \| CE \| CSA
Product Type	Relay
Range	VS861 Series
Relay Coil Voltage	90 - 280 VAC \| 80 - 140 VDC
Relay Construction	Solid-State
Relay Contact Ratings	10 A
Relay Poles/Throw	SPST
Type	Solid State
Warranty	5 years
