VMD4B-F24A | Veris Mini Relay | 4PDT | Blade | 24VAC | FF | Veris

24 VAC Full-Featured Relay, 4PDT

Brand: VerisSKU: VMD4B-F24A

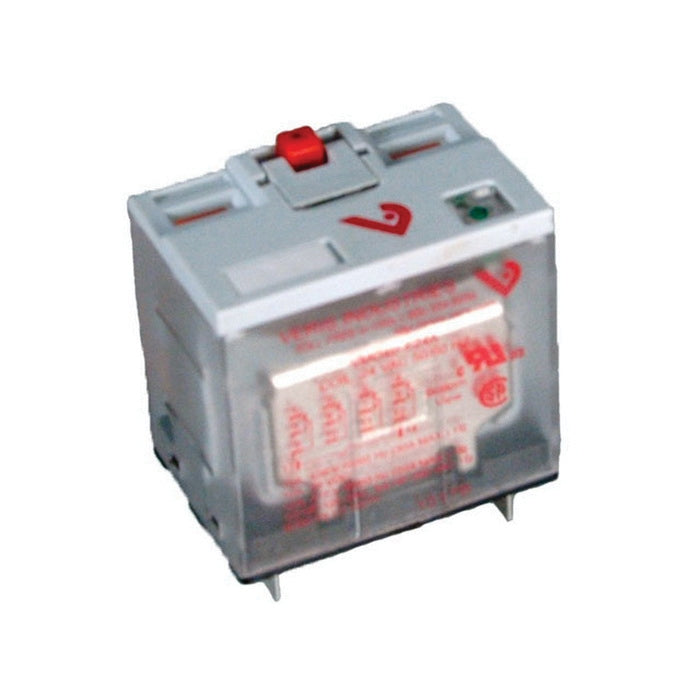

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VMD4B-F24A

Jump to: Overview & Specifications Reviews

Overview Details for VMD4B-F24A

The Veris VMD4B series are 4PDT blade-style relays for socket/DIN mounting. Both the full-featured and standard DIN rail sockets are compatible with VMD4B-F relays and feature a slim, attractive design. The full featured VMD4B-F includes an LED and a flag indicator for convenient status viewing and a push-button test feature for easy troubleshooting.

Color-coded pushbutton - allows manual operation of relay, AC coils red or DC coils blue
LED status lamp - shows coil on/off status
2-way mounting - side or DIN rail mounting system, retrofits existing panel mounting and 35 mm DIN rail
Override lever - when activated, locks pushbutton and contacts in the powered position
Flag indicator - shows relay status in manual or powered condition
ID tag/write-on plastic label, used for identification of relays in multi-relay circuits

Specifications

Item Number	VMD4B-F24A
Brand	Veris
Application	Building Automation Systems
Coil	24VAC
Feature Level	Deluxe Relay
Hand-Off-Auto	Yes
Model	VMD4B-F24A
Mounting	DIN \| Wall
Operating Temperature	-40 - 131 °F (-40 - 55 °C)
Product Certification	UL \| CE \| CSA
Product Type	Relay
Range	VMD Series
Relay Coil Voltage	24 VAC
Relay Configuration	Socket only
Relay Construction	Mechanical
Relay Contact Ratings	10 A @ 120 VAC \| 10 A @ 28 VDC \| 10 A @ 277 VAC
Relay Poles/Throw	4PDT
Socketed	Yes
Warranty	5 years
