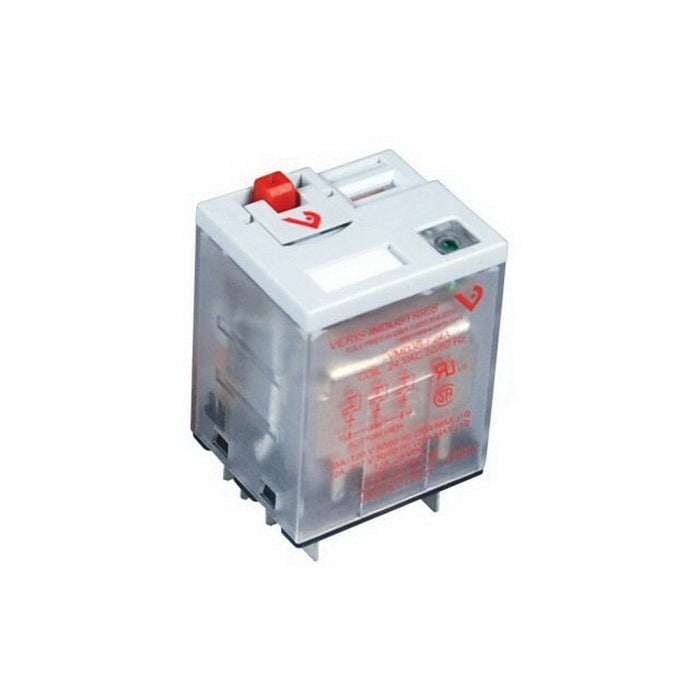

VMD3B-F24A | 15A 3PDT Socket/DIN relay | Full | 24VAC | Veris

24 VAC Full-Featured Relay, 3PDT

Brand: VerisSKU: VMD3B-F24A

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VMD3B-F24A

Jump to: Overview & Specifications Reviews

Overview Details for VMD3B-F24A

The VMD3B series are 3PDT blade-style relays for socket/DIN mounting. The full featured VMD3B-F includes an LED and a flag indicator for convenient status viewing and a push-button test feature for easy troubleshooting. The finger-safe sockets reduce risk and the hold-down clip keeps the device secure. Enhanced safety and dependability.

Color-coded pushbutton - allows manual operation of relay, AC coils red or DC coils blue
LED status lamp - shows coil on/off status
2-way mounting - side or DIN rail mounting system, retrofits existing panel mounting and 35 mm DIN rail
Override lever - when activated, locks pushbutton and contacts in the powered position
Flag indicator - shows relay status in manual or powered condition
ID tag/write-on plastic label, used for identification of relays in multi-relay circuits

Specifications

Item Number	VMD3B-F24A
Brand	Veris
Application	Building Automation Systems
Feature Level	Deluxe Relay
Hand-Off-Auto	Yes
Model	VMD3B-F24A
Mounting	DIN \| Wall
Operating Temperature	-40 - 131 °F (-40 - 55 °C)
Product Certification	UL \| CE \| CSA
Product Type	Relay
Range	VMD Series
Relay Coil Voltage	24 VAC
Relay Configuration	Socket only
Relay Construction	Mechanical
Relay Contact Ratings	15 A @ 120 VAC \| 12 A @ 28 VDC \| 12 A @ 277 VAC
Relay Poles/Throw	3PDT
Warranty	5 years
