VMD2B-F12D | 15A DPDT Socket/DIN relay | Full | 12VDC | Veris

12 VDC Full-Featured Relay, DPDT

Brand: VerisSKU: VMD2B-F12D

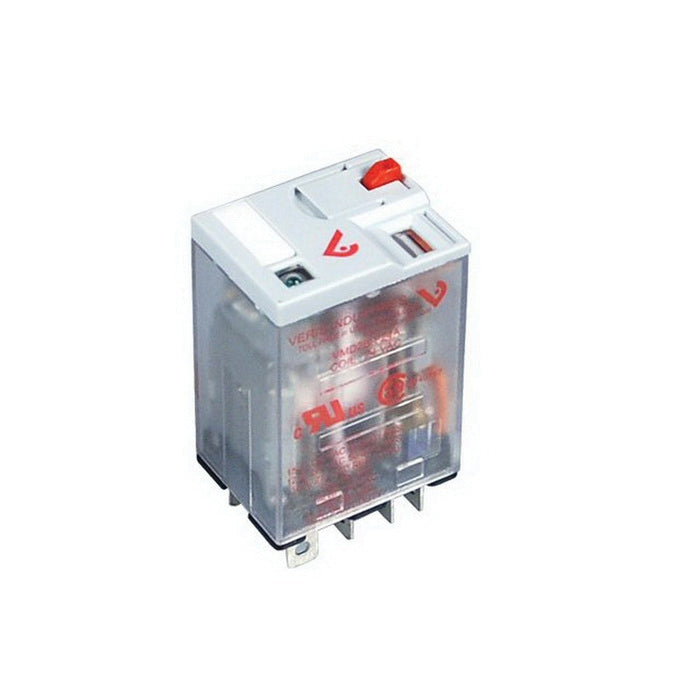

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VMD2B-F12D

Jump to: Overview & Specifications Reviews

Overview Details for VMD2B-F12D

The VMD2B-F is the full-featured model in a slim housing. The LED, the flag indicator and the test button allow for worry-free operation and easy troubleshooting with minimal downtime. Never wonder where the problem is. DPDT blade-style relays for socket/DIN mounting.

Color-coded pushbutton - allows manual operation of relay, AC coils red or DC coils blue
LED status lamp - shows coil on/off status
2-way mounting - side or DIN rail mounting system, retrofits existing panel mounting and 35 mm DIN rail
Override lever - when activated, locks pushbutton and contacts in the powered position
Flag indicator - shows relay status in manual or powered condition

Specifications

Item Number	VMD2B-F12D
Brand	Veris
Application	Building Automation Systems
Coil	12VDC
Feature Level	Deluxe Relay
Hand-Off-Auto	Yes
Model	VMD2B-F12D
Mounting	DIN \| Wall
Operating Temperature	-40 - 131 °F (-40 - 55 °C)
Product Certification	UL \| CE \| CSA
Product Type	Relay
Range	VMD Series
Relay Coil Voltage	12 VDC
Relay Configuration	Socket only
Relay Construction	Mechanical
Relay Contact Ratings	15 A @ 120 VAC \| 12 A @ 28 VDC \| 12 A @ 277 VAC
Relay Poles/Throw	DPDT
Socketed	Yes
Warranty	5 years
