VMD1B-F24A | 15A SPDT Socket/DIN relay | Full | 24VAC | Veris

24 VAC Full-Featured Relay with VBD1B-F Socket, SPDT

Brand: VerisSKU: VMD1B-F24A

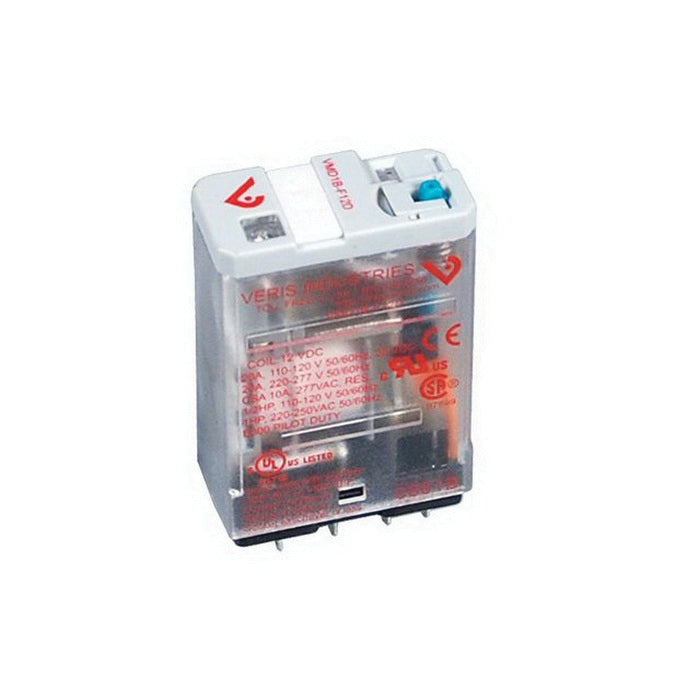

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VMD1B-F24A

Jump to: Overview & Specifications Reviews

Overview Details for VMD1B-F24A

The Veris VMD1B-F series are full-featured SPDT blade style relays for socket/DIN mounting. The VMD1B-F series are equipped with an LED for coil proof, a flag for contact proof, an override lever and a push-to-test button for momentary contact control. The VMD1B-F allows for instant and conclusive troubleshooting. Never wonder if the relay, control system or wiring is the cause of a problem. The DIN-rail-compatible VBD1B-F sockets feature a slim design with finger-safe terminals and a removable hold-down clip. Never struggle with wire clips again.

Color-coded pushbutton - allows manual operation of relay, AC coils red or DC coils blue
LED status lamp - shows coil on/off status
2-way mounting - side or DIN rail mounting system, retrofits existing panel mounting and 35 mm DIN rail
Override lever - when activated, locks pushbutton and contacts in the powered position
Flag indicator - shows relay status in manual or powered condition

Specifications

Item Number	VMD1B-F24A
Brand	Veris
Application	Building Automation Systems
Coil	24VAC
Feature Level	Deluxe Socket \| Deluxe Relay
Finger Safe Terminals	Yes
Hand-Off-Auto	Yes
Model	FKIT-VMD1B-F24A
Mounting	DIN \| Wall
Operating Temperature	-40 - 131 °F (-40 - 55 °C)
Product Certification	UL \| CE \| CSA
Product Type	Socket relay
Range	FKIT Series
Relay Coil Voltage	24 VAC
Relay Configuration	Kit
Relay Construction	Mechanical
Relay Contact Ratings	15 A @ 120 VAC \| 15 A @ 28 VDC \| 15 A @ 277 VAC
Relay Hold-Down Clip	Yes
Relay Poles/Throw	SPDT
Socketed	Yes
Warranty	5 years
