VMD1B-C12D | 15A SPDT Socket/DIN relay | Plain | 12VDC | Veris

12 VDC Standard Relay, SPDT

Brand: VerisSKU: VMD1B-C12D

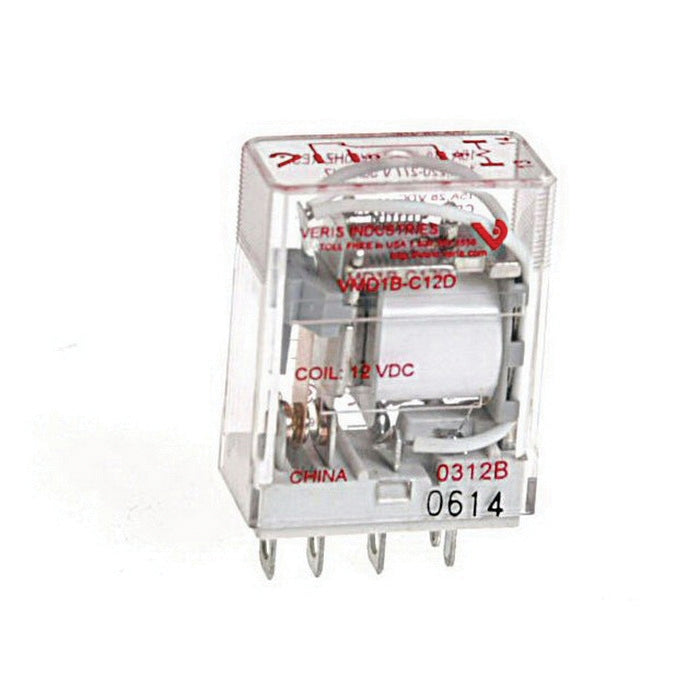

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to VMD1B-C12D

Jump to: Overview & Specifications Reviews

Overview Details for VMD1B-C12D

The Veris VMD1B-C series are SPDT blade-style relays for socket/DIN mounting. The DIN-rail compatible VBD1B-C sockets feature finger-safe terminals in a slim, attractive design.

2-way mounting - side or DIN rail mounting system, retrofits existing panel mounting and 35 mm DIN rail

Specifications

Item Number	VMD1B-C12D
Brand	Veris
Application	Building Automation Systems
Coil	12VDC
Feature Level	Economy Relay
Hand-Off-Auto	No
Model	VMD1B-C12D
Mounting	DIN \| Wall
Operating Temperature	-40 - 131 °F (-40 - 55 °C)
Product Certification	UL \| CE \| CSA
Product Type	Relay
Range	VMD Series
Relay Coil Voltage	12 VDC
Relay Configuration	Socket only
Relay Construction	Mechanical
Relay Contact Ratings	15 A @ 120 VAC \| 15 A @ 28 VDC \| 15 A @ 277 VAC
Relay Poles/Throw	SPDT
Socketed	Yes
Warranty	5 years
