V645 | Relay | SPDT | 10A | 24VAC/DC & 120VAC | Veris

Victory 24 to 30 VAC/VDC, 120 VAC Mini Command Relay, SPDT

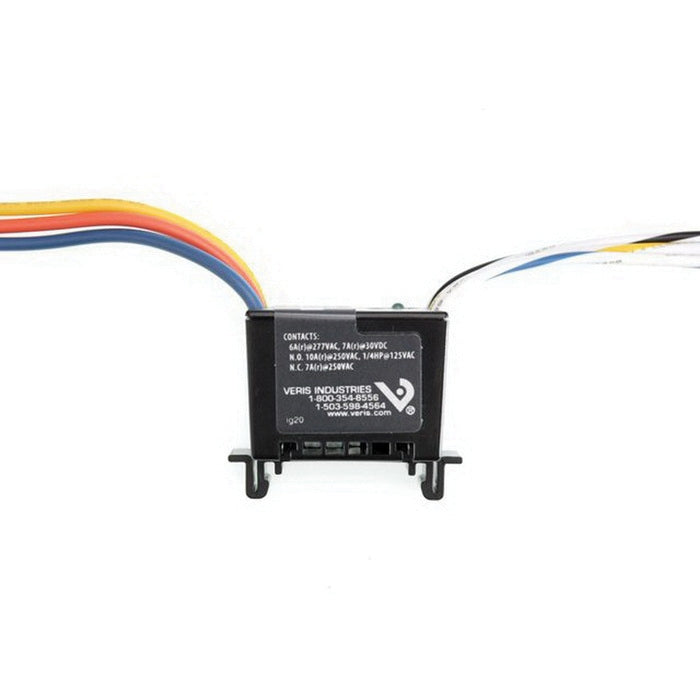

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to V645

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris V645 Documents

Datasheet Installation Guide More Info

Overview

Details for V645

Relay | SPDT | 10A | 24VAC/DC & 120VAC

The Victory 645 is an economical, multi-purpose relay designed for control of loads up to 10 A. Its small size allows for space saving utility in panels and field enclosures.

Economical multi-voltage relay
24 to 30 VAC/VDC or 120 VAC coil input provides application flexibility
Easy diagnostics - status LED for visual indication
Switch up to 10 A at 250 VAC

Specifications

Item Number	V645
Brand	Veris
Application	Building Automation Systems
Coil	120VAC
Coil	24VAC/DC
Electrical Wiring Size	Coil: 18 AWG (0.25 mm²); Contacts: 16 AWG (1.5 mm²)
Enclosed	Yes
Hand-Off-Auto	No
Model	V645
Mounting	DIN \| Wall
Operating Temperature	32 - 140 °F (0 - 60 °C)
Product Certification	UL
Product Type	Relay
Range	Victory Series
Relay Coil Voltage	24 - 30 VAC/DC \| 120 VAC
Relay Construction	Mechanical
Relay Contact Ratings	7 A @ 250 VAC \| 6 A @ 277 VAC \| 7 A @ 30 VDC
Relay Poles/Throw	SPDT
Warranty	5 years
