V421 | Enc Rly | DPDT | w/2HOA | 10-30AC/DC | 277AC | Veris
Victory 24 VAC/VDC, 208 to 277 VAC Enclosed Relay with HOA Switch, DPST

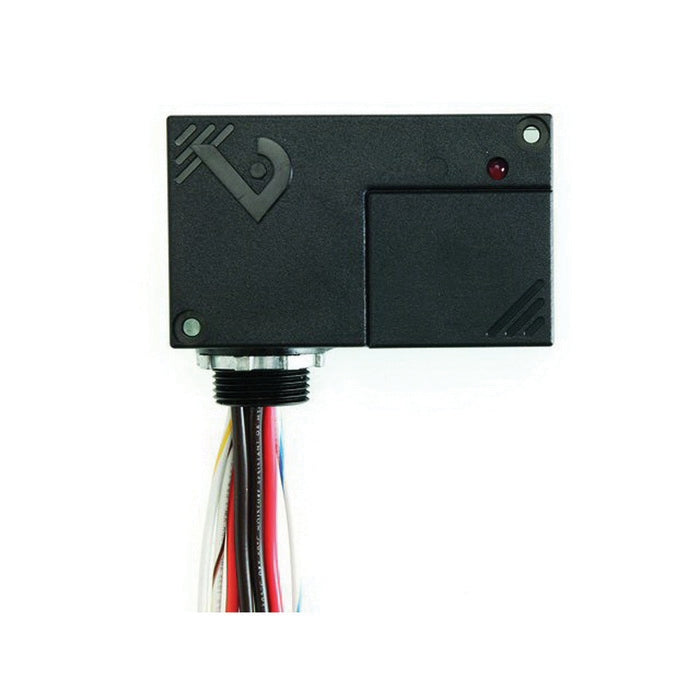

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to V421
Documents and manuals
Veris V421 Documents
Overview
Details for V421
Enc Rly | DPDT | w/2HOA | 10-30AC/DC | 277AC
The Victory 421 DPST power duty enclosed relays combine an industrial strength relay with installation flexibility. Use the nipple mount to attach to any enclosure. One coil input controls the state of two power rated contacts for simultaneous control of two devices or both poles of a single phase load. Each output is enabled with a Handoff-Auto switch for local control. The Victory series does not require a dedicated field enclosure, so it is ideal for retrofit projects. Field selectable high and low voltage coil inputs provide on-site versatility.
- Nipple mount - can be mounted to any electrical enclosure, easing installation
- Versatile coil and contact ratings minimize the number of models to choose
- Protective cover - conceals and protects the HOA switch, reducing the likelihood of tampering
- Flexible tinned stranded wire, fits easily in tight spaces and provides secure connections to wire nuts
- UL 508 listed - designed and listed for field installation, makes electrical inspection a snap
- Sleek enclosure - reduces the need for panel space
Specifications
Item Number | V421 |
Brand | Veris |
Application | Building Automation Systems |
Coil | 208-277VAC |
Coil | 24VAC/DC |
Electrical Wiring Size | Coil: 18 AWG (0.25 mm²); Contacts: 12 AWG (4 mm²); HOA: 16 AWG (1.5 mm²) |
Enclosed | Yes |
Hand-Off-Auto | Yes |
Model | V421 |
Mounting | DIN | Wall |
Operating Temperature | -40 - 104 °F (-40 - 40 °C) |
Product Certification | UL |
Product Type | Relay |
Range | Victory Series |
Relay Coil Voltage | 24 VAC/DC | 208 - 277 VAC |
Relay Construction | Mechanical |
Relay Contact Ratings | 14 A @ 14 VDC | 8 A @ 28 VDC | 20 A @ 240 VAC |
Relay Poles/Throw | DPST |
Warranty | 5 years |
