V420 | Enc Rly | DPDT | 20A | Veris

Victory 24 VAC/VDC, 208 to 277 VAC Enclosed Relay, DPDT

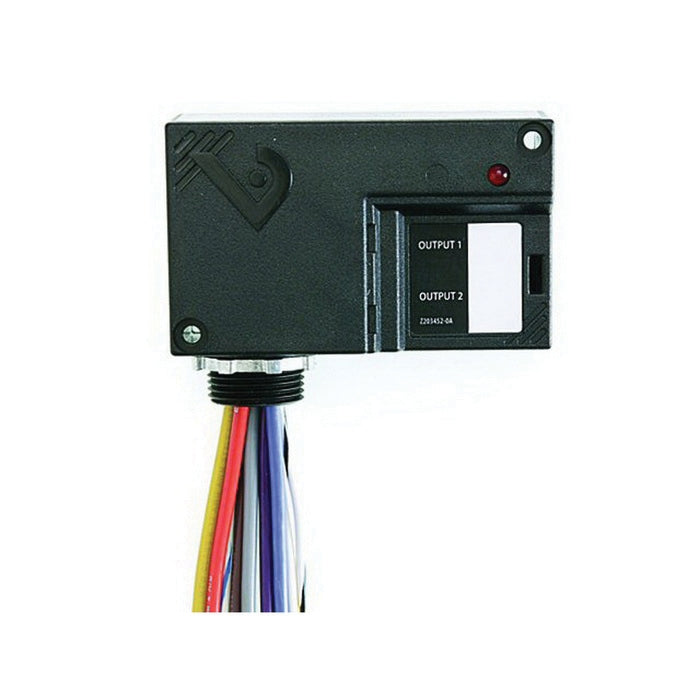

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to V420

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris V420 Documents

Datasheet Installation Guide More Info

Overview

Details for V420

Enc Rly | DPDT | 20A

The Victory 420 DPDT power duty enclosed relays combine industrial strength and ease of use. With the nipple mount enclosure, installation could not be easier. The V420 need no dedicated field enclosure, so they are the ideal retrofit devices. One coil input controls the state of two power rated contacts for the simultaneous control of two devices or both poles of a 1-phase circuit, e.g. motor loads. Field-selectable high and low voltage coil inputs provide on-site versatility.

Sleek enclosure - reduces the need for panel space
Nipple mount - can be mounted to any electrical enclosure, easing installation
Flexible tinned stranded wire, fits easily in tight spaces and provides secure connections to wire nuts
UL 508 listed - designed and listed for field installation, makes electrical inspection a snap

Specifications

Item Number	V420
Brand	Veris
Application	Building Automation Systems
Coil	208-277VAC
Coil	24VAC/DC
Electrical Wiring Size	Coil: 18 AWG (0.25 mm²); Contacts: 12 AWG (4 mm²); HOA: 16 AWG (1.5 mm²)
Enclosed	Yes
Hand-Off-Auto	No
Model	V420
Mounting	DIN \| Wall
Operating Temperature	-40 - 104 °F (-40 - 40 °C)
Product Certification	UL
Product Type	Relay
Range	Victory Series
Relay Coil Voltage	24 VAC/DC \| 208 - 277 VAC
Relay Construction	Mechanical
Relay Contact Ratings	20 A @ 28 VDC \| 20 A @ 277 VAC
Relay Poles/Throw	DPDT
Warranty	5 years
