V400 | Coil: 12-30VAC/DC | 208-277VAC | Contact: 10A DPDT | Veris

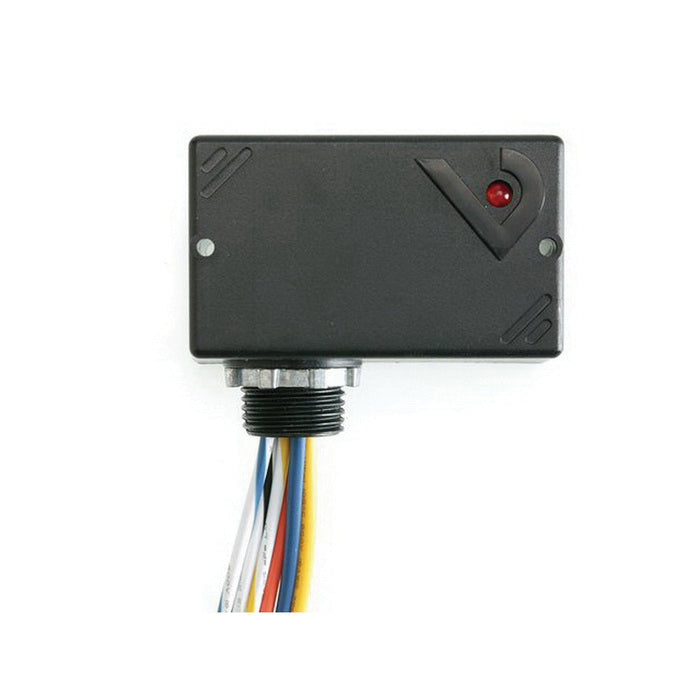

Victory 20 to 30 VAC/VDC, 208 to 277 VAC Enclosed Relay, DPDT

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to V400

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris V400 Documents

Datasheet Installation Guide More Info

Overview

Details for V400

Coil: 12-30VAC/DC | 208-277VAC | Contact: 10A DPDT

The Victory 400 series 10 A DPDT pilot duty enclosed relays combine industrial strength and ease of use. The nipple mount enclosure makes installation easy. With no need for a dedicated field enclosure, they are the ideal retrofit devices. One coil input controls the state of two pilot rated contacts for the simultaneous control of two devices or both poles of a 1-phase circuit, e.g. motor loads. Field-selectable high and low voltage coil inputs provide on-site versatility.

Nipple mount - can be mounted to any electrical enclosure, easing installation
Sleek enclosure - reduces the need for panel space
Flexible tinned stranded wire, fits easily in tight spaces and provides secure connections to wire nuts
UL 508 listed - designed and listed for field installation, makes electrical inspection a snap
Eliminate conduit - run low voltage instead of line voltage, eliminates conduit in some applications

Specifications

Item Number	V400
Brand	Veris
Application	Building Automation Systems
Coil	120VAC
Coil	20-30VAC/DC
Electrical Wiring Size	Coil: 18 AWG (0.25 mm²); Contacts: 16 AWG (1.5 mm²)
Enclosed	Yes
Hand-Off-Auto	No
Model	V400
Mounting	DIN \| Wall
Operating Temperature	-29 - 140 °F (-34 - 60 °C)
Product Certification	UL
Product Type	Relay
Range	Victory Series
Relay Coil Voltage	20 - 30 VAC/DC \| 208 - 277 VAC
Relay Construction	Mechanical
Relay Contact Ratings	10 A @ 28 VDC \| 10 A @ 250 VAC
Relay Poles/Throw	DPDT
Warranty	5 years
