V321 | Enc Rly | DPST | w/2HOA | 10-30AC/DC | 120AC | Veris

Victory 24 VAC/VDC, 120 VAC Enclosed Relay with HOA Switch, DPST

Brand: VerisSKU: V321

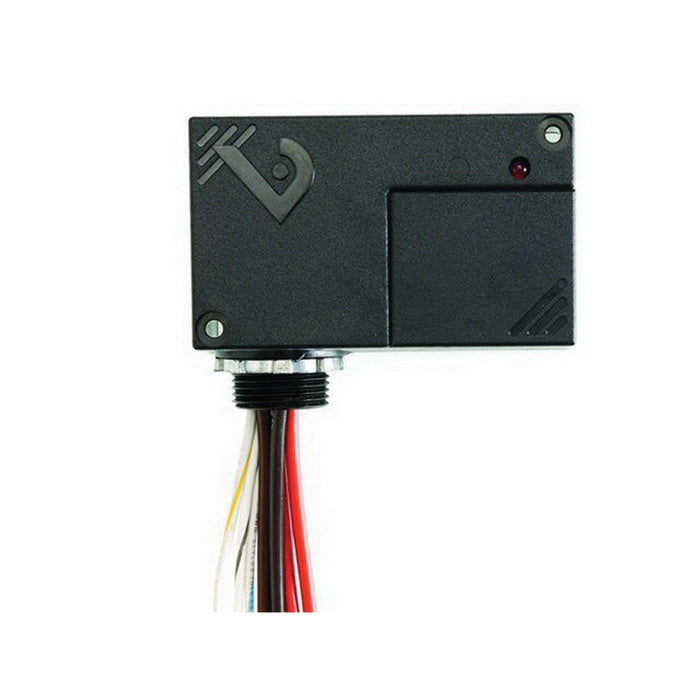

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to V321

Jump to: Overview & Specifications Reviews

Overview Details for V321

The Victory 321 DPST power duty enclosed relays combine an industrial strength relay with installation flexibility. Use the nipple mount to attach to any enclosure. One coil input controls the state of two power rated contacts for simultaneous control of two devices or both poles of a single phase load. Each output is enabled with a Handoff-Auto switch for local control. The Victory series does not require a dedicated field enclosure, so it is ideal for retrofit projects. Field selectable high and low voltage coil inputs provide on-site versatility.

Nipple mount - can be mounted to any electrical enclosure, easing installation
Versatile coil and contact ratings minimize the number of models to choose
Protective cover - conceals and protects the HOA switch, reducing the likelihood of tampering
Flexible tinned stranded wire, fits easily in tight spaces and provides secure connections to wire nuts
UL 508 listed - designed and listed for field installation, makes electrical inspection a snap
Sleek enclosure - reduces the need for panel space

Specifications

Item Number	V321
Brand	Veris
Application	Building Automation Systems
Coil	120VAC
Coil	24VAC/DC
Electrical Wiring Size	Coil: 18 AWG (0.25 mm²); Contacts: 12 AWG (4 mm²); HOA: 16 AWG (1.5 mm²)
Enclosed	Yes
Hand-Off-Auto	Yes
Model	V321
Mounting	DIN \| Wall
Operating Temperature	-40 - 104 °F (-40 - 40 °C)
Product Certification	UL
Product Type	Relay
Range	Victory Series
Relay Coil Voltage	24 VAC/DC \| 120 VAC
Relay Construction	Mechanical
Relay Contact Ratings	14 A @ 14 VDC \| 8 A @ 28 VDC \| 20 A @ 240 VAC
Relay Poles/Throw	DPST
Warranty	5 years
