V220 | Coil: 24VAC/DC | 208-277VAC | Contact: 20A SPDT | Veris

Victory 24 VAC/VDC, 208 to 277 VAC Enclosed Relay, SPDT

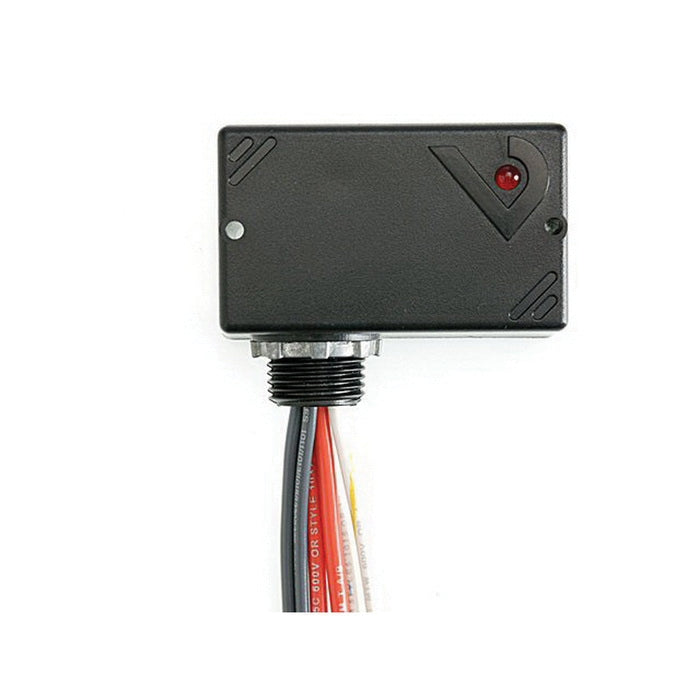

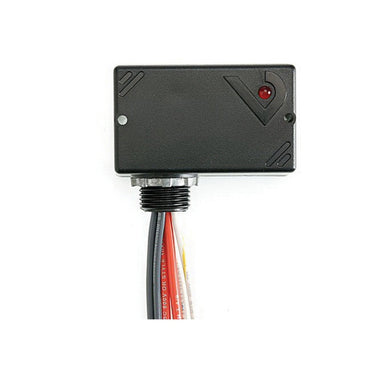

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to V220

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris V220 Documents

Datasheet Installation Guide More Info

Overview

Details for V220

Coil: 24VAC/DC | 208-277VAC | Contact: 20A SPDT

The Victory 220 20 A SPDT enclosed relays combine a power duty relay with a high level of field-selectability and versatility. The devices are quick and easy to install using the threaded nipple mount. With no need for a dedicated field enclosure, this series is ideal for retrofit projects.

Sleek enclosure - reduces the need for panel space
The nipple mount feature allows the V220 series to be mounted to any electrical enclosure easing installation
HP ratings make the V220 ideal for control of fractional HP motors
UL 508 listed - designed and listed for field installation, makes electrical inspection a snap
Eliminate conduit - run low voltage instead of line voltage, eliminates conduit in some applications

Specifications

Item Number	V220
Brand	Veris
Application	Building Automation Systems
Coil	120VAC
Coil	24VAC/DC
Electrical Wiring Size	Coil: 18 AWG (0.25 mm²); Contacts and HOA: 12 AWG (4 mm²)
Enclosed	Yes
Hand-Off-Auto	No
Model	V220
Mounting	DIN \| Wall
Operating Temperature	-29 - 131 °F (-34 - 55 °C)
Product Certification	UL
Product Type	Relay
Range	Victory Series
Relay Coil Voltage	24 VAC/DC \| 208 - 277 VAC
Relay Construction	Mechanical
Relay Contact Ratings	20 A @ 28 VDC \| 20 A @ 277 VAC
Relay Poles/Throw	SPDT
Warranty	5 years
