V200D | Enc Rly | Dual | SPDT | 10A | Veris

Victory 10 to 30 VAC/VDC, 208 to 277 VAC Enclosed Relay, Dual SPDT

Brand: VerisSKU: V200D

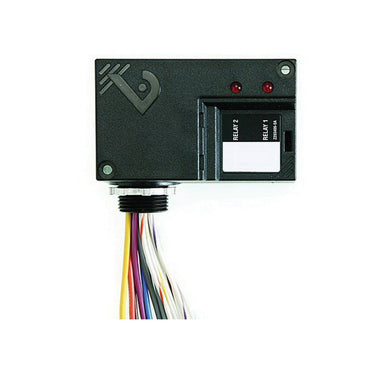

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to V200D

Jump to: Overview & Specifications Reviews

Overview Details for V200D

Victory 200 series 10 A enclosed relays are pilot-duty relays in an easy-to-use nipple mount enclosure. The V200 series provide quick relay mounting without a dedicated field enclosure, making them ideal for retrofit projects. Field-selectable high and low voltage coil inputs provide on-site versatility.

Sleek enclosure - reduces the need for panel space
Nipple mount - Victory series products can be mounted to any electrical enclosure, easing installation
Flexible tinned stranded wire, fits easily in tight spaces and provides secure connections to wire nuts
UL 508 listed - designed and listed for field installation, makes electrical inspection a snap
Eliminate conduit - run low voltage instead of line voltage, eliminates conduit in some applications

Specifications

Item Number	V200D
Brand	Veris
Application	Building Automation Systems
Coil	10-30VAC/DC
Coil	208-277VAC
Electrical Wiring Size	Coil: 18 AWG (0.25 mm²); Contacts: 16 AWG (1.5 mm²)
Enclosed	Yes
Hand-Off-Auto	No
Model	V200D
Mounting	DIN \| Wall
Operating Temperature	-40 - 131 °F (-40 - 55 °C)
Product Certification	UL
Product Type	Relay
Range	Victory Series
Relay Coil Voltage	10 - 30 VAC/DC; 208 - 277 VAC
Relay Construction	Mechanical
Relay Contact Ratings	10 A @ 28 VDC \| 10 A @ 277 VAC
Relay Poles/Throw	2 x SPDT
Warranty	5 years
