V122 | Enc Rly | SPDT | 20A | w/Monitored HOA | 0-10K | Veris

Victory 24 VAC/VDC, 120 VAC Enclosed Relay with Resistive Monitored HOA Switch, SPST/NO

Brand: VerisSKU: V122

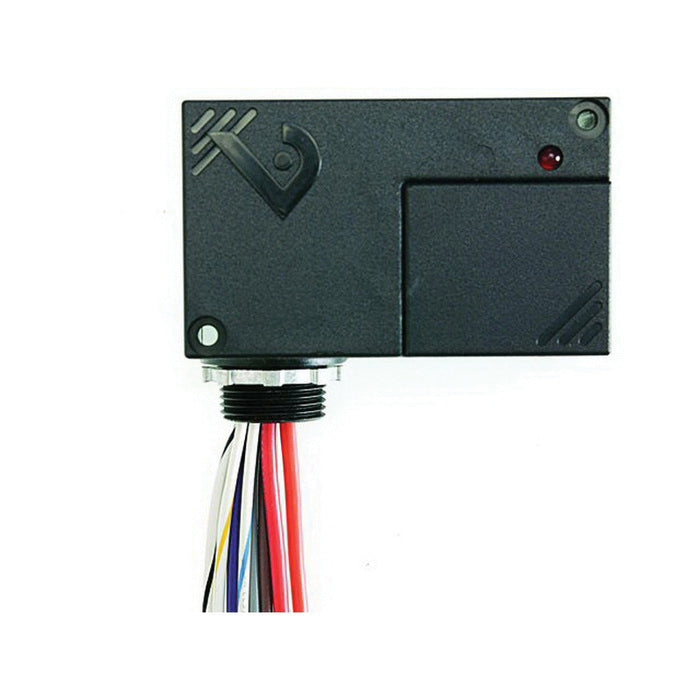

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to V122

Jump to: Overview & Specifications Reviews

Overview Details for V122

The Victory 122 series HOA relays have a concealed HOA switch for local control and troubleshooting with limited unauthorized switch manipulation. To further guard against control system override, the V122 equipped with a monitored HOA. The V122 provides a 2-wire resistive output. Now you can enjoy the convenience of local control with none of the drawbacks.

Protective cover - conceals and protects the HOA switch, reducing the likelihood of tampering
Nipple mount - allows the V121 series to be mounted to any electrical enclosure easing installation
Flexible tinned stranded wire, fits easily in tight spaces and provides secure connections to wire nuts
UL 508 listed - designed and listed for field installation, makes electrical inspection a snap
Sleek enclosure - reduces the need for panel space
Switch position monitors - allows the control system to notify personnel when a load is inadvertently left on or off

Specifications

Item Number	V122
Brand	Veris
Application	Building Automation Systems
Coil	120VAC
Coil	24VAC/DC
Electrical Wiring Size	Coil: 18 AWG (0.25 mm²); Contacts: 12 AWG (4 mm²); HOA: 16 AWG (1.5 mm²)
Enclosed	Yes
Hand-Off-Auto	Yes
Model	V122
Mounting	DIN \| Wall
Operating Temperature	-40 - 131 °F (-40 - 55 °C)
Product Certification	UL
Product Type	Relay
Range	Victory Series
Relay Coil Voltage	24 VAC/DC; 120 VAC
Relay Construction	Mechanical
Relay Contact Ratings	12 A @ 14 VDC \| 8 A @ 28 VDC \| 20 A @ 240 VAC
Relay Poles/Throw	SPST
Warranty	5 years
