V102 | Enc Rly | SPST | 10A | w/Monitored HOA | 0-10K | Veris

Victory 10 to 30 VAC/VDC, 120 VAC Enclosed Relay with Resistive Monitored HOA Switch, SPST/NO

Brand: VerisSKU: V102

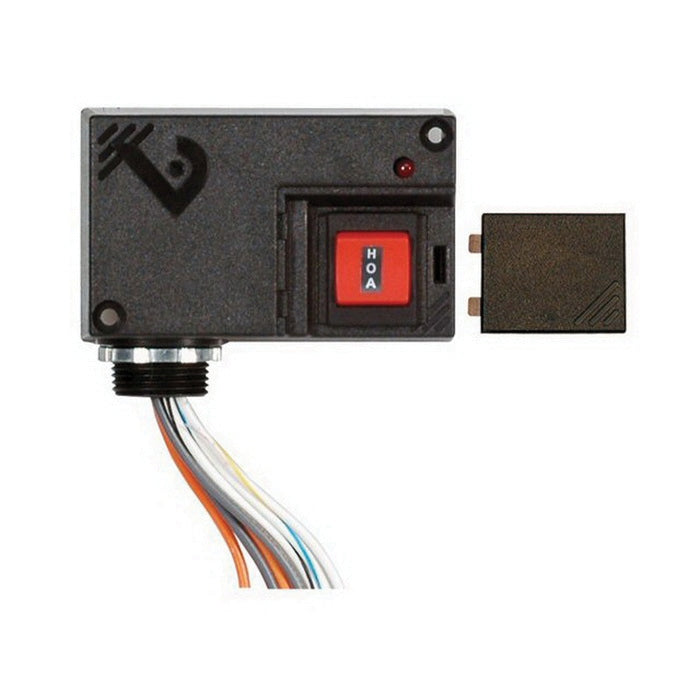

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to V102

Jump to: Overview & Specifications Reviews

Overview Details for V102

With a concealed HOA switch for local control and troubleshooting, the Victory 102 series relays provide HOA flexibility while limiting unauthorized switch manipulation. To further guard against control system override, some relays are equipped with a monitored HOA. The V102 provides a 2-wire resistive output. Now your customers and technicians can enjoy the benefit of local control without the problems often caused by override.

Nipple mount - can be mounted to any electrical enclosure, easing installation
Protective cover - conceals and protects the HOA switch, reducing the likelihood of tampering
Sleek enclosure - reduces the need for panel space
Flexible tinned stranded wire, fits easily in tight spaces and provides secure connections to wire nuts
UL 508 listed - designed and listed for field installation, makes electrical inspection a snap
Switch position monitors - allows the control system to notify personnel when a load is inadvertently left on or off

Specifications

Item Number	V102
Brand	Veris
Application	Building Automation Systems
Coil	10-30VAC/DC
Coil	120VAC
Electrical Wiring Size	Coil: 18 AWG (0.25 mm²); Contacts and HOA: 16 AWG (1.5 mm²)
Enclosed	Yes
Hand-Off-Auto	Yes
Model	V102
Mounting	DIN \| Wall
Operating Temperature	-40 - 131 °F (-40 - 55 °C)
Product Certification	UL
Product Type	Relay
Range	Victory Series
Relay Coil Voltage	10 - 30 VAC/DC; 120 VAC
Relay Construction	Mechanical
Relay Contact Ratings	10 A @ 250 VAC
Relay Poles/Throw	SPST
Warranty	5 years
