V101D | Enc Rly | SPST | w/2HOA | 10-30AC/DC | 120AC | Veris

Victory 10 to 30 VAC/VDC, 120 VAC Enclosed Relay with HOA Switch, Dual SPST/NO

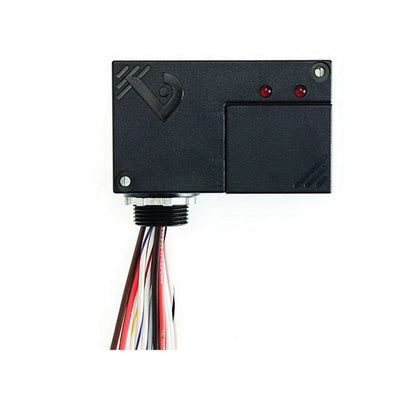

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to V101D

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris V101D Documents

Datasheet Installation Guide More Info

Overview

Details for V101D

Enc Rly | SPST | w/2HOA | 10-30AC/DC | 120AC

With a concealed HOA switch for local control and troubleshooting, the Victory 101 series relays provide HOA flexibility while limiting unauthorized switch manipulation. To further guard against control system override.

Nipple mount - can be mounted to any electrical enclosure, easing installation
Protective cover - conceals and protects the HOA switch, reducing the likelihood of tampering
Sleek enclosure - reduces the need for panel space
Flexible tinned stranded wire, fits easily in tight spaces and provides secure connections to wire nuts
UL 508 listed - designed and listed for field installation, makes electrical inspection a snap

Specifications

Item Number	V101D
Brand	Veris
Application	Building Automation Systems
Coil	10-30VAC/DC
Coil	120VAC
Electrical Wiring Size	Coil: 18 AWG (0.25 mm²); Contacts and HOA: 16 AWG (1.5 mm²)
Enclosed	Yes
Hand-Off-Auto	Yes
Model	V101D
Mounting	DIN \| Wall
Operating Temperature	-40 - 131 °F (-40 - 55 °C)
Product Certification	UL
Product Type	Relay
Range	Victory Series
Relay Coil Voltage	10 - 30 VAC/DC; 120 VAC
Relay Construction	Mechanical
Relay Contact Ratings	10 A @ 250 VAC
Relay Poles/Throw	2 x SPST
Warranty	5 years
