V100 | Enc Rly | SPDT | 10A | 12-30VAC/DC&120VAC | Veris

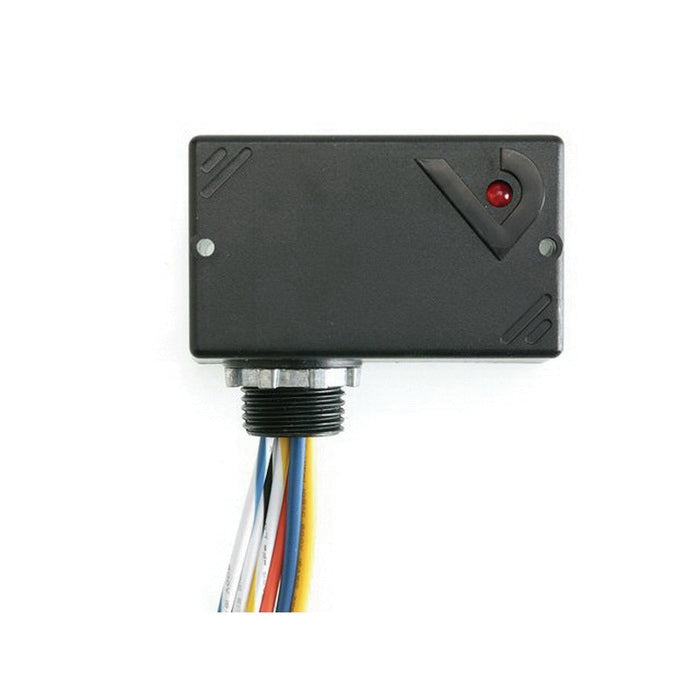

Victory 10 to 30 VAC/VDC, 120 VAC Enclosed Relay, SPDT

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to V100

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris V100 Documents

Datasheet Installation Guide More Info

Overview

Details for V100

Enc Rly | SPDT | 10A | 12-30VAC/DC&120VAC

Description

Victory 100 and 200 Series 10A enclosed relays are pilot-duty relays in an easy-to-use nipple mount enclosure. The V100/V200 Series provide quick relay mounting without a dedicated field enclosure, making them ideal for retrofit projects. Field-selectable high and low voltage coil inputs provide on-site versatility.

APPLICATIONS

Command contactors
Control motors
Isolation
Device interlocking
Relay logic
Sense voltages for alarm conditions

Specifications

Item Number	V100
Brand	Veris
Application	Building Automation Systems
Coil	12-30VDC
Coil	120VAC
Electrical Wiring Size	Coil: 18 AWG (0.25 mm²); Contacts: 16 AWG (1.5 mm²)
Enclosed	Yes
Hand-Off-Auto	No
Model	V100
Mounting	DIN \| Wall
Operating Temperature	-29 - 140 °F (-34 - 60 °C)
Product Certification	UL
Product Type	Relay
Range	Victory Series
Relay Coil Voltage	10 - 30 VAC/DC; 120 VAC
Relay Construction	Mechanical
Relay Contact Ratings	10 A @ 28 VDC \| 10 A @ 277 VAC
Relay Poles/Throw	SPDT
Warranty	5 years
