Documents: U006-0047

Datasheet More Info

U006-0047 | SeaHawk Distance-Read Leak Detection Integration Controller | RLE LD2100 | Veris

Modbus BACnet SNMP SMTP and Relay Output Distance Read Panel, DIN Rail Mount

Brand: VerisSKU: U006-0047

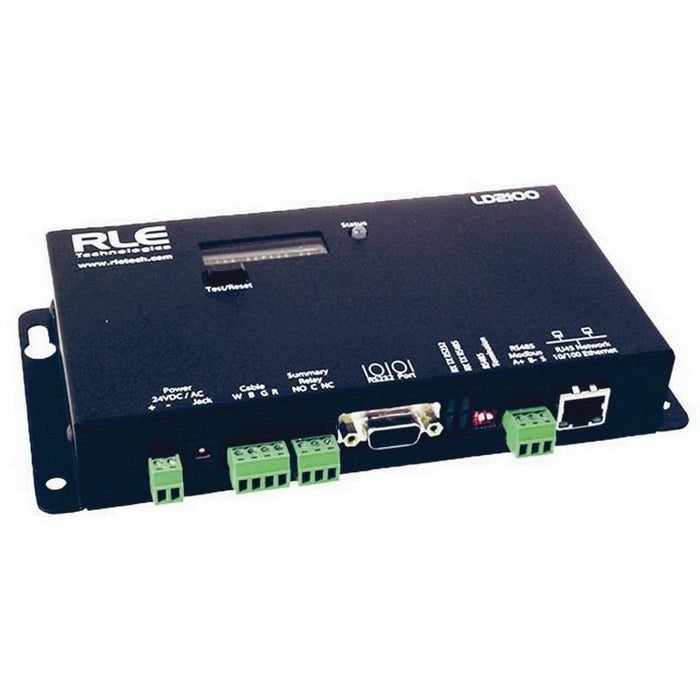

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to U006-0047

Jump to: Overview & Specifications Reviews

Overview Details for U006-0047

The LD2100 panels detect and report the presence and location of the cable-specific fluid. When the fluid comes in contact with the patented cable, the monitoring panel quickly pinpoints the location of the leak, triggering an alarm and displaying the location.

Adjustable leak and contamination alarm thresholds reduce false alarms due to high humidity, high detection accuracy
PC configuration - fast response - summary alarm relay output
9600 baud, No parity, 8 data bits, 1 stop bit RS-232 communication ports
1200, 2400, 9600, or 19200 baud (selectable), No parity, 8 data bits, 1 stop bit RS-485 communication ports
VT100 compatible RS-232 terminal emulation protocals
Slave, RTU Mode, Supports function codes 03, 04, 06, and 16, Johnson N2 RS-485 Modbus protocals
IPv4.0 TCP/IP, HTML, TFTP expanded protocols
V1: V2C MIB-2 compliant; NMS Manageable with Get, Set, Traps SNMP expanded protocols
Supports client authentication (plain and login), compatible with ESMTP servers SMTP email expanded protocols
Modbus slave; TCP/IP transmission protocol Modbus TCP/IP expanded protocols
ASHRAE Std 135-2004 Annex J BACnet/IP expanded protocols
4 email recipients, email sent on alarm and return to normal email
4 community strings SNMP traps
Last 500 events logging capabilities
Cable current level every day, for the last 288 days trend logging capabilities
1 Administrator (password for configuration, no password required to view panel status) display Access
Green alphanumeric dot matrix display
Test/reset push buttons
1 bi-color Power/Status (green=power on, red=alarm) LED indicator

Adjustable leak and contamination alarm thresholds reduce false alarms due to high humidity, high detection accuracy
PC configuration - fast response - summary alarm relay output
9600 baud, No parity, 8 data bits, 1 stop bit RS-232 communication ports
1200, 2400, 9600, or 19200 baud (selectable), No parity, 8 data bits, 1 stop bit RS-485 communication ports
VT100 compatible RS-232 terminal emulation protocals
Slave, RTU Mode, Supports function codes 03, 04, 06, and 16, Johnson N2 RS-485 Modbus protocals
IPv4.0 TCP/IP, HTML, TFTP expanded protocols
V1: V2C MIB-2 compliant; NMS Manageable with Get, Set, Traps SNMP expanded protocols
Supports client authentication (plain and login), compatible with ESMTP servers SMTP email expanded protocols
Modbus slave; TCP/IP transmission protocol Modbus TCP/IP expanded protocols
ASHRAE Std 135-2004 Annex J BACnet/IP expanded protocols
4 email recipients, email sent on alarm and return to normal email
4 community strings SNMP traps
Last 500 events logging capabilities
Cable current level every day, for the last 288 days trend logging capabilities
1 Administrator (password for configuration, no password required to view panel status) display Access
Green alphanumeric dot matrix display
Test/reset push buttons
1 bi-color Power/Status (green=power on, red=alarm) LED indicator

Specifications

Item Number	U006-0047
Brand	Veris
Application	Water and Leak detection for BAS applications
Communication	SNMP \| SMTP \| TCP/IP \| ModBus (TCP-IP) \| BACnet (IP)
Leak Detection Sensor Type	Controller
Logging Capability	Yes
Model	LD2100
Operating Altitude	15;000' (4572 m) max.
Operating Temperature	32 - 122 °F (0 - 50 °C)
Outputs	Protocol Communication \| Relay
Product Certification	CE \| ETL
Product Type	Control panel
Range	Leak Detection
Relay Contact Ratings	1 A @ 24 VDC \| 0.5 A @ 120 VAC
Response Time	5 - 995 s
Warranty	2 years
