Documents: U006-0001

Datasheet More Info

U006-0001 | SeaHawk Single Zone Leak Detection Controller | RLE LD1000 | Veris

24 VAC/VDC at 300 mA Input Relay Output 1-Zone Zone Leak Detection Panel

Brand: VerisSKU: U006-0001

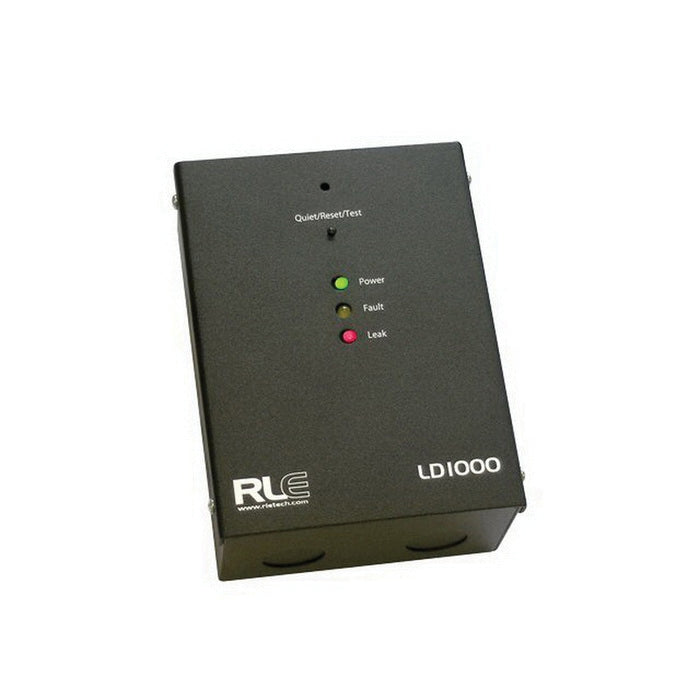

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to U006-0001

Jump to: Overview & Specifications Reviews

Overview Details for U006-0001

LD1000 control panels continuously monitor up to 1000 ft of SC or SC-C detection cable per zone. If the cable detects fluid at any point along its length, the detection panel illuminates the corresponding zone LED, clearly indicating which zone is affected. Additionally, if the cable loses continuity, the panel will activate a cable fault LED. The detection sensitivity can be set independently for each zone. A summary alarm relay output is standard.

Application flexibility - monitor up to 1000 ft of water leak detection cable per zone with the LD1000
Two LED indicators per zone, for easy troubleshooting, leak and cable fault
Sensitivity settings for each zone reduce false alarms, maximum detection accuracy
Fast response - summary alarm relay output
1 for reset, quiet, and test push buttons
1-zone, supervised, relay output

Application flexibility - monitor up to 1000 ft of water leak detection cable per zone with the LD1000
Two LED indicators per zone, for easy troubleshooting, leak and cable fault
Sensitivity settings for each zone reduce false alarms, maximum detection accuracy
Fast response - summary alarm relay output
1 for reset, quiet, and test push buttons
1-zone, supervised, relay output

Specifications

Item Number	U006-0001
Brand	Veris
Application	Water and Leak detection for BAS applications
Model	LD10003
Operating Temperature	32 - 122 °F (0 - 50 °C)
Outputs	Relay
Product Certification	CE \| ETL
Product Type	Control panel
Range	Leak Detection
Relay Contact Ratings	1 A @ 24 VDC \| 0.5 A @ 120 VAC
Warranty	2 years
