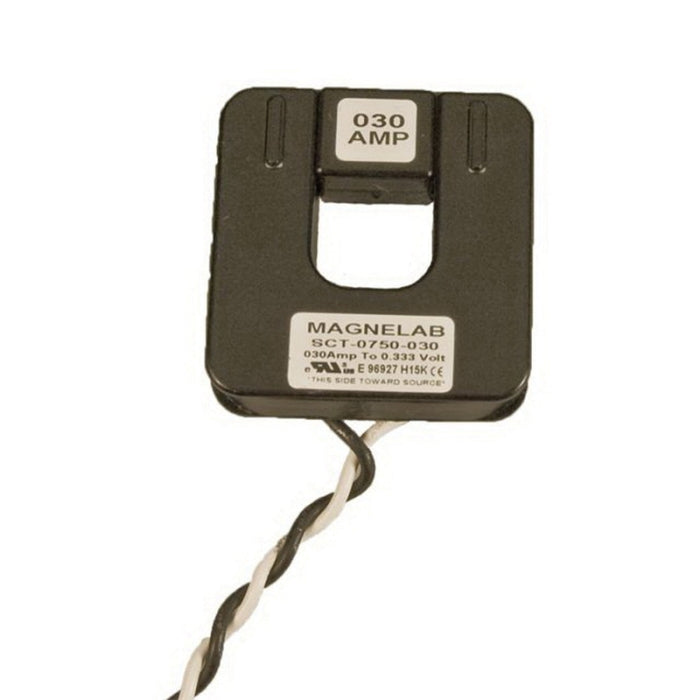

U004-0032 | CT | SplitCore | 30A:0.333VAC | 0.750" | Veris

30 A Input 0.333 VAC Output Current Transducer, Split-Core, 3/4 in

Brand: VerisSKU: U004-0032

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to U004-0032

Jump to: Overview & Specifications Reviews

Overview Details for U004-0032

SCT AC current sensors have center hole sizes and current ratings to suit many application. SCT models have a split core that is perfect for retrofits. Output is the industry standard of 0.333 VAC.

0.333 VAC standard output, compatible with existing systems
Interleaving joints for reliability with a self-locking mechanism and no exposed metal

Specifications

Item Number	U004-0032
Brand	Veris
Accuracy	+/-1% of Reading from 10 to 130% of Rated Current
Current Core	Split Core
Current Measurement Range	0 - 30 A
Dimensions	2" (51 mm) W x 2.1" (54 mm) L x 0.61" (16 mm) H x 0.75" (20 mm) ID
Environmental Conditions	Storage Temperature: -40 to 158 °F
Frequency Rating	50 to 400
Mounting	Split-Core
Operating Temperature	14 - 131 °F
Output Specifications	0.3 V
Product Type	Current Transducer
Range	SCT
Sensor	Current Sensor
