U001-0021 | Flow | SDI | SS | 1.5-10 | 4-20mA | no dspy | Veris

Brand: VerisSKU: U001-0021

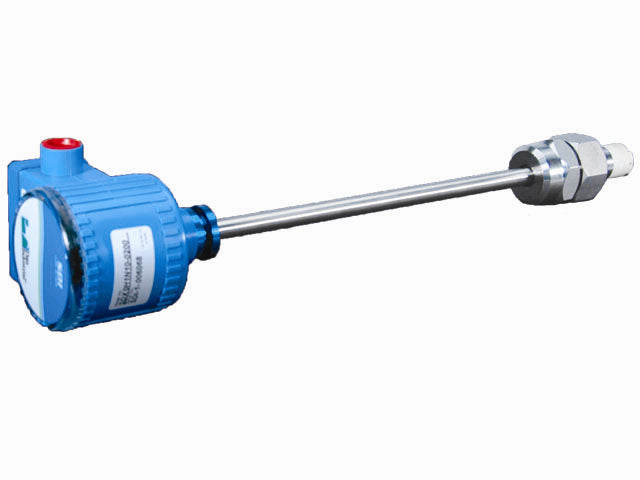

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to U001-0021

Jump to: Overview & Specifications Reviews

Overview Details for U001-0021

Flow | SDI | SS | 1.5-10 | 4-20mA | no dspy

Description

The direct insert style liquid flow sensor with stainless steel/PPS plastic or PEEK plastic tip combines flow sensing with a built-in transmitter for an all-in-one flow measuring system. This device fits all 1-1/2” to over 36” (38 to 915 mm) pipes, and it is intended for direct installation into the pipe through a 1” NPT hole.

This sensor is available with or without hot tap capability. In the hot tap installation, the sensor is mounted in the pipe under pressure by attaching a service saddle or weld-on fitting to the pipe. Then the sensor assembly is attached to an isolation valve & extended into the pipeline to measure flow. Hot tap installations are often required in retrofit projects, but even in new construction, a hot tap sensor can be desirable for service considerations.

Software and programming cable are required to operate these meters. If the meter will be used for hot tap installation, the A1027 tool is also needed (see Ordering Information).
