TZ202M | Freeze Stat,2 Relay,Manual,15-54F,20Ft | Veris

Copper Tubing, 20ft, 2 SPDT Relays, Manual Reset, 15-54°F Freeze Stat

Brand: VerisSKU: TZ202M

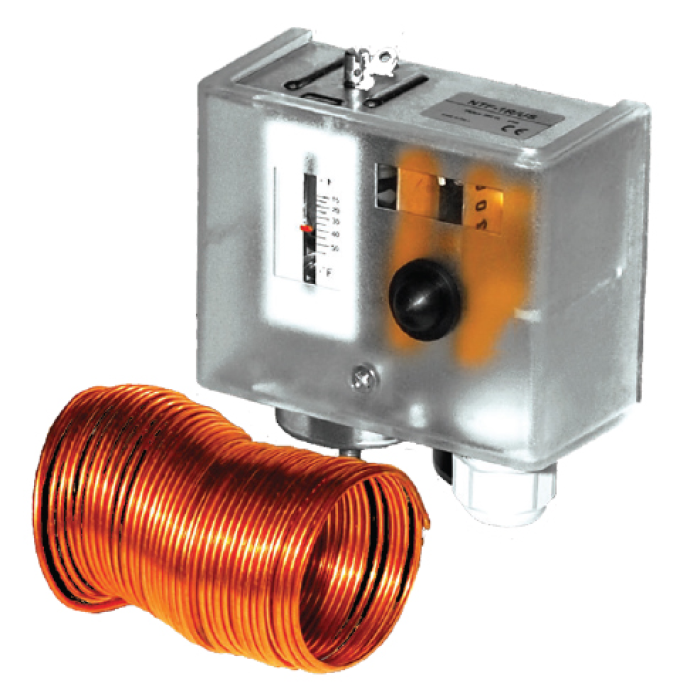

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TZ202M

Jump to: Overview & Specifications Reviews

Overview Details for TZ202M

The TZ Series are low limit controllers, also known as "freeze stats". These devices are designed for use on HVAC equipment that require low temperature cutout protection to prevent cooling coils from freezing. They are mounted between the heating and cooling coils on the supply side of a fan unit and respond to the lowest temperature sensed along any one-foot section of the sensing element. The TZ Series offers manual, automatic reset versions and models that feature one or two sets of SPDT contacts. Numerous capillary lengths are also available.

Specifications

Item Number	TZ202M
Brand	Veris
Application	Cooling Coil Frost Monitoring
Brand	Veris
Capillary Length	20 ft (6 m)
Control Type	ON/OFF; low level single-stage or cut-out control; with (1) microswitch unit
Dimension Depth	2.18" (55.25 mm)
Dimension Height	4.53" (115.01 mm)
Dimension Weight	1.6 lbs (0.7 kg)
Dimension Width	4.35" (110.49 mm)
Electrical Wiring Size	14 AWG (2.5 mm²) Max.
Enclosure Material	Galvanized Steel Base; ABS Fire Retardant Cover
Max. Contact Switching Current	15 (8) A
Max. Contact Switching Voltage	250 Vac
Medium	Temperature in Air
Model	TZ202M
Mounting	Duct with Mounting Box
Operating Temperature	Enclosure: 14 to 131 °F (-10 to 55 °C)
Product Type	Sensor
Range	TZ
Relay Construction	2; Manual Reset; Form C (SPDT Contact)
Sensing Capillary Installation	Duct and across coil mounted
Sensing Capillary Material	Copper
Sensor	Temperature
Standards	CE
Storage Temperature	14 - 158 °F (-10 to 70 °C)
Temperature Measurement Range	14 - 54 °F (-10 to 12 °C)
Warranty	2 years
