TW2XPXA | Temp,Wall,Xmtr,Prot | Veris

Sensor, Temp, Wall, Transmitter, BACnet/Modbus

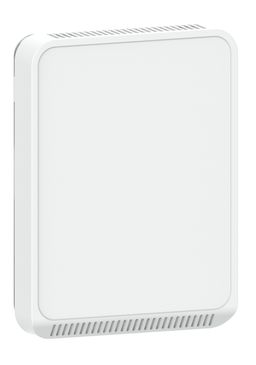

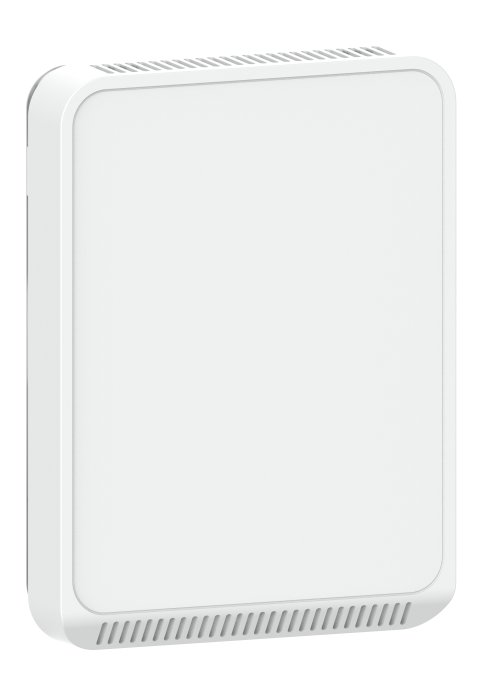

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TW2XPXA

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris TW2XPXA Documents

Datasheet Installation guide More Info

Overview

Details for TW2XPXA

Temp,Wall,Xmtr,Prot

The Veris TW2 Protocol Series of temperature sensors for living space is a versatile sensor platform for use with BAS controllers designed to accept BACnet or Modbus outputs via RS-485. TW2 Series sensors feature no-logo on the faceplate and are available with three user interface options: touchscreen, LCD with three buttons and blank.

Specifications

Item Number	TW2XPXA
Brand	Veris
Color	Matte White
Communication Specifications	BACnet MSTP or Modbus via RS-485; selectable
Communication	Protocol
Electrical Wiring Size	Screw terminals; 18-24 AWG
Enclosure Material	High impact ABS plastic
Input Specifications	Class 2; 20 to 30 Vdc; 24 Vac; 50 to 60 Hz
IP Protection	IP20
Measurement Type	Temperature
Operating Humidity	0 to 95% RH non-condensing
Operating Temperature	0 to 50 °C (32 to 122 °F)
Override	No
Setpoint	No
Standards EMC	EN61000 Series - industrial immunity
Temperature Measurement Accuracy	±0.2 °C (±0.4 °F) typical
Temperature Measurement Range	0 to 50 °C (32 to 122 °F)
Temperature Measurement Resolution	0.1 °C (0.1 °F)
Temperature Sensor Type	Solid state; integrated circuit
