Documents: TW2XAXM
TW2XAXM | Temp,Wall,20K | Veris

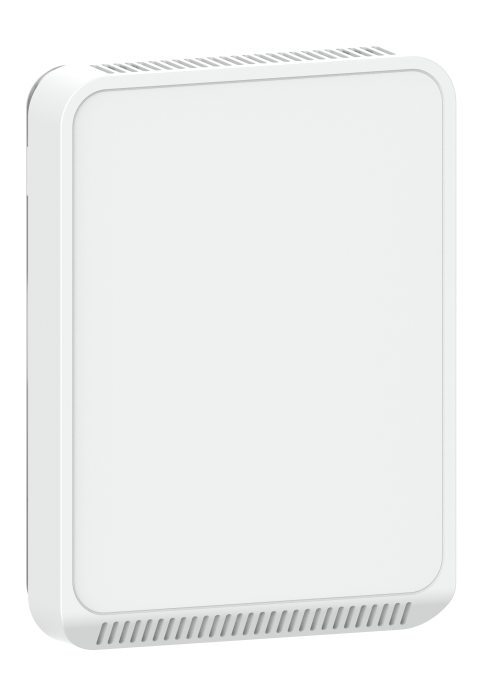

Sensor, Temp, Wall, 20k Thermistor
Overview Details for TW2XAXM
The Veris TW2 Series of temperature sensors for living space is a versatile sensor platform for use with various brands of BAS controllers designed to accept 4 to 20mA, 0 to 5Vdc, 0 to 10Vdc, and various thermistor outputs. TW2 Series sensors feature no-logo on the faceplate and are available with three user interface options: touchscreen, LCD with three buttons and blank.
The Veris TW2 Series of temperature sensors for living space is a versatile sensor platform for use with various brands of BAS controllers designed to accept 4 to 20mA, 0 to 5Vdc, 0 to 10Vdc, and various thermistor outputs. TW2 Series sensors feature no-logo on the faceplate and are available with three user interface options: touchscreen, LCD with three buttons and blank.
Specifications
Item Number | TW2XAXM |
Brand | Veris |
Color | Matte White |
Display Type | None |
Electrical Wiring Size | Screw terminals; 18-24 AWG |
Enclosure Material | High impact ABS plastic |
Input Specifications | Class 2; 20 to 30 Vdc; 24 Vac; 50 to 60 Hz |
IP Protection | IP20 |
Measurement Type | Temperature |
Operating Humidity | 0 to 95% RH non-condensing |
Operating Temperature | 0 to 50 °C (32 to 122 °F) |
Output Specifications | Selectable 4 to 20 mA; 0 to 5 V; 0 to 10 V |
Outputs | Analog |
Override | No |
Setpoint | No |
Standards EMC | EN61000 Series - industrial immunity |
Temperature Measurement Range | 0 to 50 °C (32 to 122 °F) |
Temperature Measurement Resolution | 0.1 °C (0.1 °F) |
Temperature Sensor Type | Thermistor; 20K NTC |
