TW2XAXH | Temp,Wall,10K T3 | Veris
Sensor, Temp, Wall, 10k Type 3 Thermistor

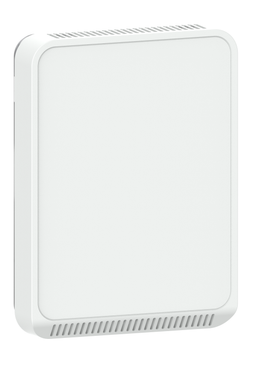

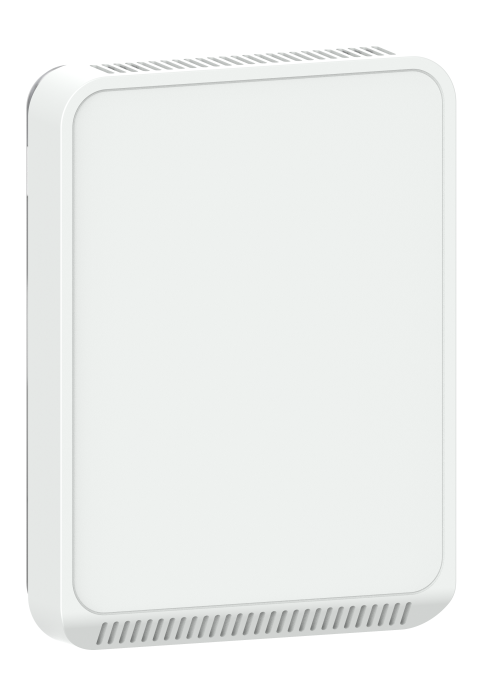

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TW2XAXH
Documents and manuals
Veris TW2XAXH Documents
Overview
Details for TW2XAXH
Temp,Wall,10K T3
The Veris TW2 Series of temperature sensors for living space is a versatile sensor platform for use with various brands of BAS controllers designed to accept 4 to 20mA, 0 to 5Vdc, 0 to 10Vdc, and various thermistor outputs. TW2 Series sensors feature no-logo on the faceplate and are available with three user interface options: touchscreen, LCD with three buttons and blank.
Specifications
Item Number | TW2XAXH |
Brand | Veris |
Color | Matte White |
Electrical Wiring Size | Screw terminals; 18-24 AWG |
Enclosure Material | High impact ABS plastic |
Input Specifications | Class 2; 20 to 30 Vdc; 24 Vac; 50 to 60 Hz |
IP Protection | IP20 |
Measurement Type | Temperature |
Operating Humidity | 0 to 95% RH non-condensing |
Operating Temperature | 0 to 50 °C (32 to 122 °F) |
Output Specifications | Selectable 4 to 20 mA; 0 to 5 V; 0 to 10 V |
Outputs | Analog |
Override | No |
Setpoint | No |
Standards EMC | EN61000 Series - industrial immunity |
Temperature Measurement Accuracy | ±0.2 °C |
Temperature Measurement Range | 0 to 50 °C (32 to 122 °F) |
Temperature Measurement Resolution | 0.1 °C (0.1 °F) |
Temperature Sensor Type | Thermistor; 10K Type 3 |
