TW2XAXC | Temp,Wall,1K Pt | Veris

Sensor, Temp, Wall, 1k Platinum RTD

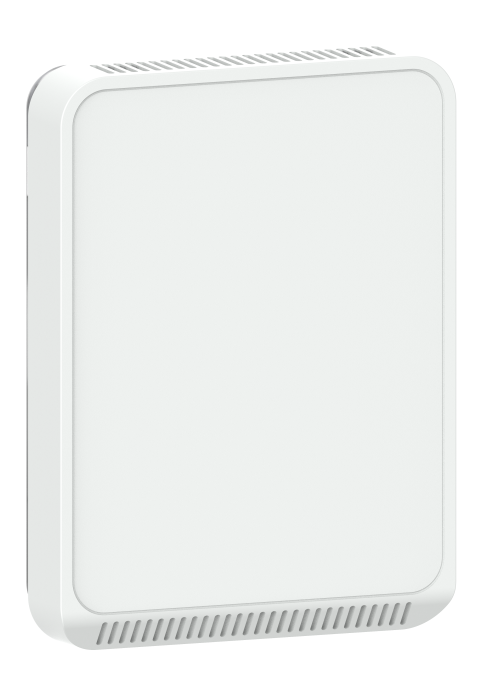

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TW2XAXC

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris TW2XAXC Documents

Datasheet Installation guide More Info

Overview

Details for TW2XAXC

Temp,Wall,1K Pt

The Veris TW2 Series of temperature sensors for living space is a versatile sensor platform for use with various brands of BAS controllers designed to accept 4 to 20mA, 0 to 5Vdc, 0 to 10Vdc, and various thermistor outputs. TW2 Series sensors feature no-logo on the faceplate and are available with three user interface options: touchscreen, LCD with three buttons and blank.

Specifications

Item Number	TW2XAXC
Brand	Veris
Color	Matte White
Electrical Wiring Size	Screw terminals; 18-24 AWG
Enclosure Material	High impact ABS plastic
Input Specifications	Class 2; 20 to 30 Vdc; 24 Vac; 50 to 60 Hz
IP Protection	IP20
Measurement Type	Temperature
Operating Humidity	0 to 95% RH non-condensing
Operating Temperature	0 to 50 °C (32 to 122 °F)
Output Specifications	Selectable 4 to 20 mA; 0 to 5 V; 0 to 10 V
Outputs	Analog
Override	No
Setpoint	No
Standards EMC	EN61000 Series - industrial immunity
Temperature Measurement Accuracy	±0.3 °C
Temperature Measurement Range	0 to 50 °C (32 to 122 °F)
Temperature Measurement Resolution	0.1 °C (0.1 °F)
Temperature Sensor Type	RTD; 1K Ohm Platinum
