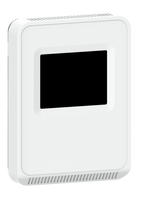

TW2TAXN | Temp,Wall,Touch,1.8k | Veris

Sensor, Temp, Wall, Touchscreen, 1.8k Thermistor

Brand: VerisSKU: TW2TAXN

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TW2TAXN

Jump to: Overview & Specifications Reviews

Overview Details for TW2TAXN

The Veris TW2 Series of temperature sensors for living space is a versatile sensor platform for use with various brands of BAS controllers designed to accept 4 to 20mA, 0 to 5Vdc, 0 to 10Vdc, and various thermistor outputs. TW2 Series sensors feature no-logo on the faceplate and are available with three user interface options: touchscreen, LCD with three buttons and blank. The Veris TW2 Series of temperature sensors for living space is a versatile sensor platform for use with various brands of BAS controllers designed to accept 4 to 20mA, 0 to 5Vdc, 0 to 10Vdc, and various thermistor outputs. TW2 Series sensors feature no-logo on the faceplate and are available with three user interface options: touchscreen, LCD with three buttons and blank.

Specifications

Item Number	TW2TAXN
Brand	Veris
Color	Matte White
Display Resolution	240 x 300 px
Display Size	2.4 in (61 mm)
Display Type	LCD; Color; Backlit; Capacititve Touchscreen
Electrical Wiring Size	Screw terminals; 18-24 AWG
Enclosure Material	High impact ABS plastic
Input Specifications	Class 2; 20 to 30 Vdc; 24 Vac; 50 to 60 Hz
IP Protection	IP20
Measurement Type	Temperature
Operating Humidity	0 to 95% RH non-condensing
Operating Temperature	0 to 50 °C (32 to 122 °F)
Output Specifications	Selectable 4 to 20 mA; 0 to 5 V; 0 to 10 V
Outputs	Analog
Override	Yes
Setpoint Range	Temperature: 0 to 50 °C (32 to 122 °F) / 10 to 35 °C (50 to 95 °F); selectable Fan Speed: Off; Low; Med.; High.
Setpoint Specifications	0-10Vdc. Temperature or fan speed (one setpoint type is selectable via dip switch)
Setpoint	Yes
Standards EMC	EN61000 Series - industrial immunity
Temperature Measurement Range	0 to 50 °C (32 to 122 °F)
Temperature Measurement Resolution	0.1 °C (0.1 °F)
Temperature Sensor Type	Thermistor; 1.8K
