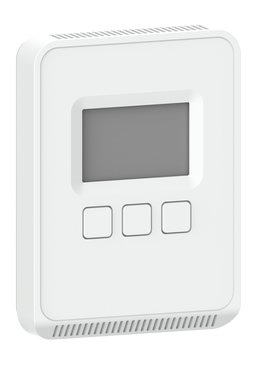

TW2LPXA | Temp,Wall,LCD,Xmtr,Prot | Veris
Sensor, Temp, Wall, LCD, Transmitter, BACnet/Modbus

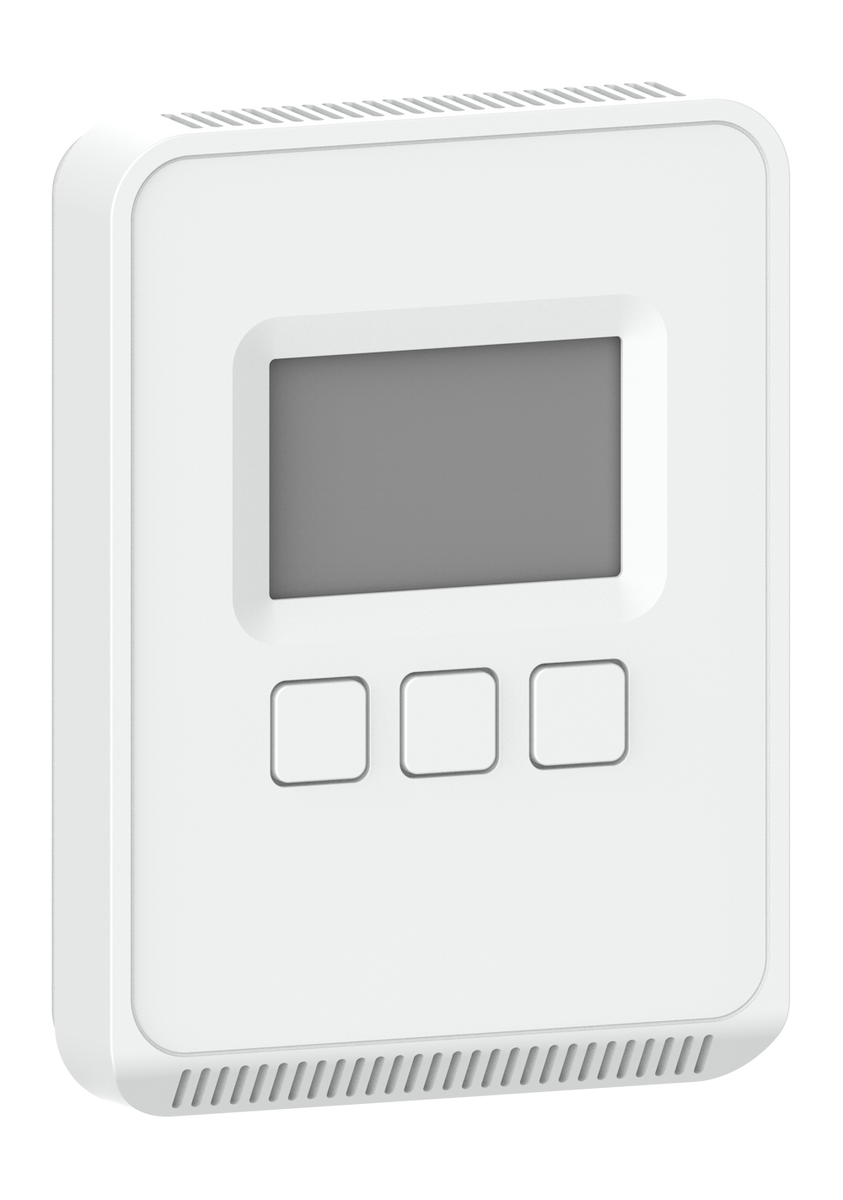

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TW2LPXA
Documents and manuals
Veris TW2LPXA Documents
Overview
Details for TW2LPXA
Temp,Wall,LCD,Xmtr,Prot
Specifications
Item Number | TW2LPXA |
Brand | Veris |
Color | Matte White |
Communication Specifications | BACnet MSTP or Modbus via RS-485; selectable |
Communication | Protocol |
Display Size | 2.05 in (52 mm) |
Display Type | Segmented LCD; with 3 Buttons |
Electrical Wiring Size | Screw terminals; 18-24 AWG |
Enclosure Material | High impact ABS plastic |
Input Specifications | Class 2; 20 to 30 Vdc; 24 Vac; 50 to 60 Hz |
IP Protection | IP20 |
Measurement Type | Temperature |
Operating Humidity | 0 to 95% RH non-condensing |
Operating Temperature | 0 to 50 °C (32 to 122 °F) |
Override | Yes |
Setpoint Range | Temperature: 0 to 50 °C (32 to 122 °F) max.; adjustable span Fan Speed: Off; Low; Med.; High. |
Setpoint Specifications | Temperature or fan speed (one setpoint type is selectable via dip switch) |
Setpoint | Yes |
Standards EMC | EN61000 Series - industrial immunity |
Temperature Measurement Accuracy | ±0.2 °C (±0.4 °F) typical |
Temperature Measurement Range | 0 to 50 °C (32 to 122 °F) |
Temperature Measurement Resolution | 0.1 °C (0.1 °F) |
Temperature Sensor Type | Solid state; integrated circuit |
