TW2LAXN | Temp,Wall,LCD,1.8k | Veris

Sensor, Temp, Wall, LCD, 1.8k Thermistor

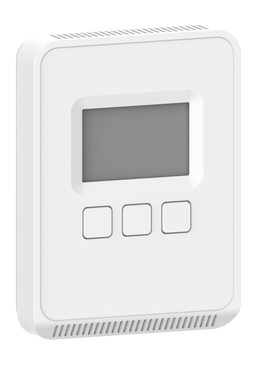

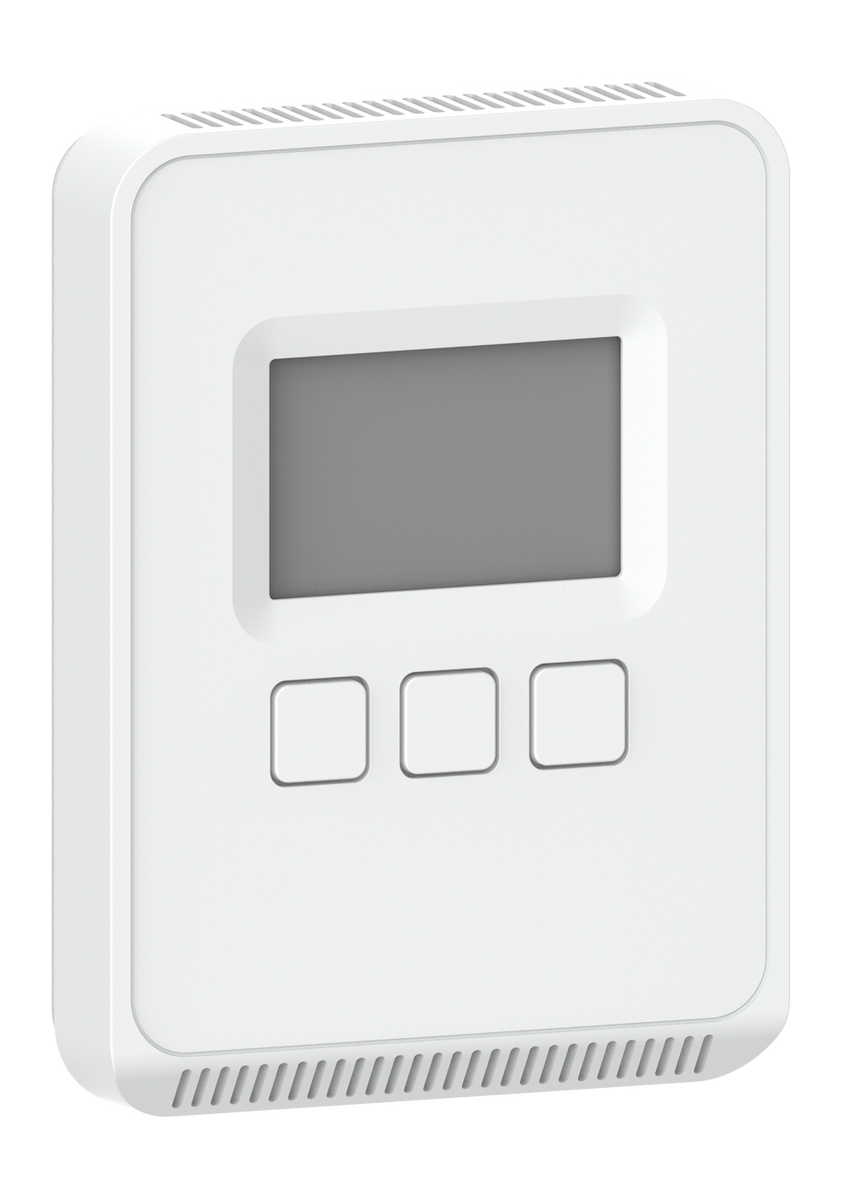

The photo is for representation purposes only and may not be a photo of product being purchased.

Details for TW2LAXN

Temp,Wall,LCD,1.8k

Item Number	TW2LAXN
Brand	Veris
Color	Matte White
Display Size	2.05 in (52 mm)
Display Type	Segmented LCD; with 3 Buttons
Electrical Wiring Size	Screw terminals; 18-24 AWG
Enclosure Material	High impact ABS plastic
Input Specifications	Class 2; 20 to 30 Vdc; 24 Vac; 50 to 60 Hz
IP Protection	IP20
Measurement Type	Temperature
Operating Humidity	0 to 95% RH non-condensing
Operating Temperature	0 to 50 °C (32 to 122 °F)
Output Specifications	Selectable 4 to 20 mA; 0 to 5 V; 0 to 10 V
Outputs	Analog
Override	Yes
Setpoint Range	Temperature: 0 to 50 °C (32 to 122 °F) / 10 to 35 °C (50 to 95 °F); selectable Fan Speed: Off; Low; Med.; High.
Setpoint Specifications	0-10Vdc. Temperature or fan speed (one setpoint type is selectable via dip switch)
Setpoint	Yes
Standards EMC	EN61000 Series - industrial immunity
Temperature Measurement Range	0 to 50 °C (32 to 122 °F)
Temperature Measurement Resolution	0.1 °C (0.1 °F)
Temperature Sensor Type	Thermistor; 1.8K
