TW2LAXA | Temp,Wall,LCD,Xmtr | Veris

Sensor, Temp, Wall, LCD, Transmitter

Veris | TW2LAXA

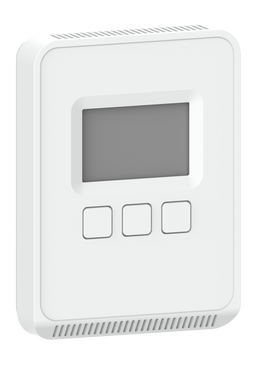

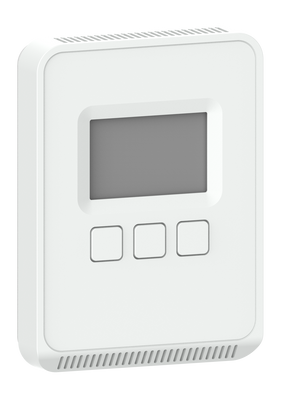

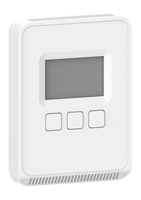

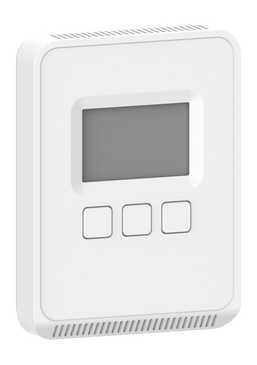

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TW2LAXA

Documents and manuals

Veris TW2LAXA Documents

Overview

Details for TW2LAXA

Temp,Wall,LCD,Xmtr

Specifications

Item Number TW2LAXA
Brand Veris
Color Matte White
Display Size 2.05 in (52 mm)
Display Type Segmented LCD; with 3 Buttons
Electrical Wiring Size Screw terminals; 18-24 AWG
Enclosure Material High impact ABS plastic
Input Specifications Class 2; 20 to 30 Vdc; 24 Vac; 50 to 60 Hz
IP Protection IP20
Measurement Type Temperature
Operating Humidity 0 to 95% RH non-condensing
Operating Temperature 0 to 50 °C (32 to 122 °F)
Output Specifications Selectable 4 to 20 mA; 0 to 5 V; 0 to 10 V
Outputs Analog
Override Yes
Setpoint Range Temperature: 0 to 50 °C (32 to 122 °F) / 10 to 35 °C (50 to 95 °F); selectable Fan Speed: Off; Low; Med.; High.
Setpoint Specifications 0-10Vdc. Temperature or fan speed (one setpoint type is selectable via dip switch)
Setpoint Yes
Standards EMC EN61000 Series - industrial immunity
Standards CE; UL 916; RCM; ICES-003; REACH; RoHS
Temperature Measurement Accuracy ±0.2 °C (±0.4 °F) typical
Temperature Measurement Range 0 to 50 °C (32 to 122 °F)
Temperature Measurement Resolution 0.1 °C (0.1 °F)
Temperature Sensor Type Solid state; integrated circuit
Warranty 5 Years
