TSR0B | Temp | Recessed | 10k US | Black | Veris

Black ABS Plastic 10 kOhm US Thermistor Ceiling Mount NTC Temperature Sensor

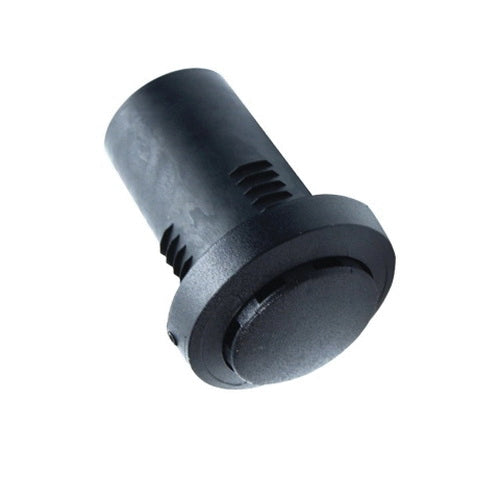

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TSR0B

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris TSR0B Documents

Datasheet Installation Guide More Info

Overview

Details for TSR0B

Temp | Recessed | 10k US | Black

TS sensors are ceiling-mounted in an unobtrusive housing. The easy to install units are ideal for office environments, as well as museums, galleries or any other open indoor setting. These sensors are highly accurate, reliable and come with a 5 years warranty.

Ceiling mount probe for more accurate readings, ideal for open office environments
Recessed press-fit sensor virtually disappears, great for museums and galleries

Specifications

Item Number	TSR0B
Brand	Veris
Application Zone	Living Space
Application	Hospitals \| Labs \| Clean Rooms
Brand	Veris
Color	Black
Dimension Depth	Installed: 0.6" (16 mm) \| Total: 2.7" (68 mm)
Dimension Height	2" (51 mm)
Dimension Width	2" (51 mm)
Electrical Wiring Size	22 AWG (0.32 mm²)
Enclosure Material	ABS Plastic
Measurement Type	Temperature
Model	TSR0B
Mounting	Ceiling
Operating Temperature	-13 - 221 °F (-25 - 105 °C)
Outputs	Resistive output
Product Type	Sensor
Range	TS
Sensor Configuration	Ceiling
Sensor	Temperature
Temperature Calibration Certificate	None
Temperature Measurement Accuracy	±0.4 °F (±0.2 °C)
Temperature Measurement Range	32 - 158 °F (0 - 70 °C)
Temperature Sensor Type	10k Ohm US Thermistor
Warranty	5 years
