TSI0 | Temp | Recessed | 1k | Veris (OBSOLETE)

Cloud White ABS Plastic 1 kOhm Balco (Nickel-Iron) RTD Ceiling Mount PTC Temperature Sensor

Brand: VerisSKU: TSI0

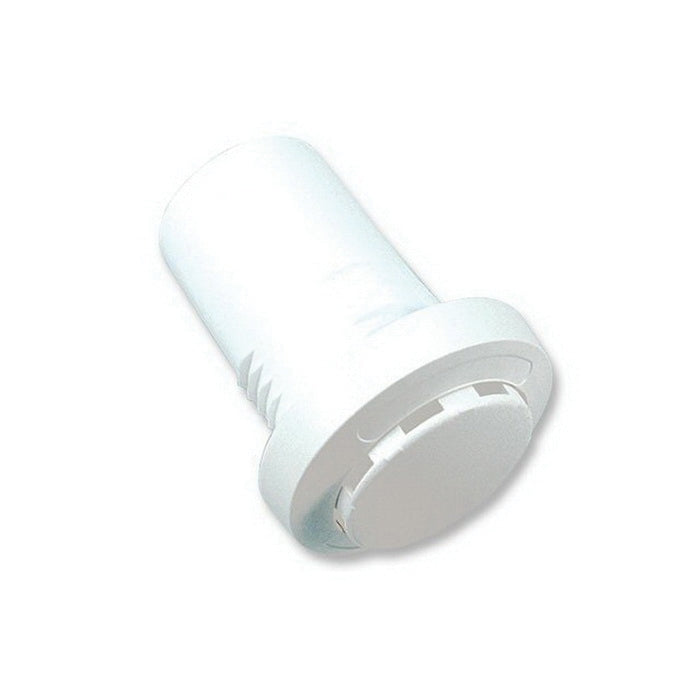

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TSI0

Jump to: Overview & Specifications Reviews

Overview Details for TSI0

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS

TS sensors are ceiling-mounted in an unobtrusive housing. The easy to install units are ideal for office environments, as well as museums, galleries or any other open indoor setting. These sensors are highly accurate, reliable and come with a 5 years warranty.

Ceiling mount probe for more accurate readings, ideal for open office environments
Recessed press-fit sensor virtually disappears, great for museums and galleries

Specifications

Item Number	TSI0
Brand	Veris
Application Zone	Living Space
Application	Hospitals \| Labs \| Clean Rooms
Brand	Veris
Color	Cloud White
Dimension Depth	Installed: 0.6" (16 mm) \| Total: 2.7" (68 mm)
Dimension Height	2" (51 mm)
Dimension Width	2" (51 mm)
Electrical Wiring Size	22 AWG (0.32 mm²)
Enclosure Material	ABS Plastic
Measurement Type	Temperature
Model	TSI0
Mounting	Ceiling
Operating Temperature	-13 - 221 °F (-25 - 105 °C)
Outputs	Resistive output
Product Type	Sensor
Range	TS
Sensor Configuration	Ceiling
Sensor	Temperature
Temperature Calibration Certificate	None
Temperature Measurement Accuracy	±1.2 °F (±0.7 °C) @ 158 °F (70 °C)
Temperature Sensor Type	1k Ohm BALCO (Nickel Iron) RTD
Warranty	5 years
