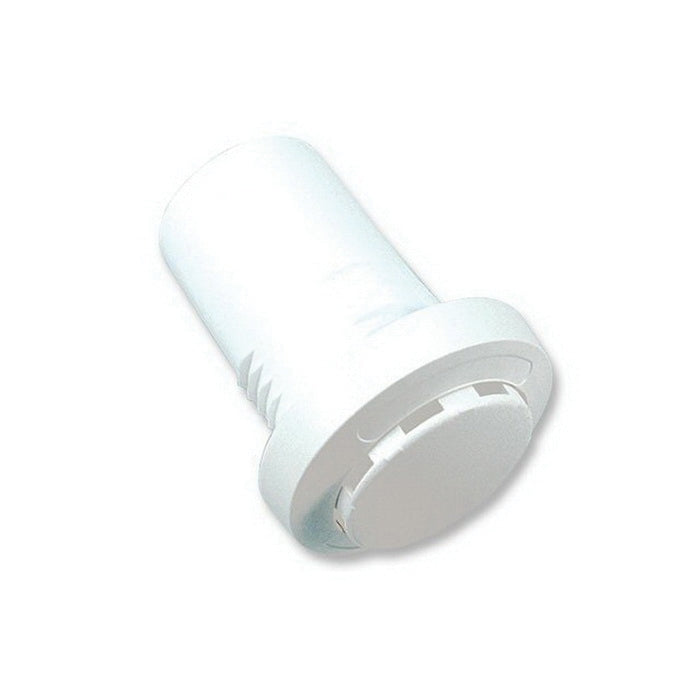

TSC0 | Temp | Recessed | 1k Pt | Veris

Cloud White ABS Plastic 1 kOhm Platinum RTD Ceiling Mount PTC Temperature Sensor

Brand: VerisSKU: TSC0

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TSC0

Suggested Alternatives

ACI A/1K-2W-PBS RTD 1000 ohm (2 wire) | Plastic Button Temperature Sensor | Blackhawk Supply

A/1K-2W-PBS | RTD 1000 ohm (2 wire) | Plastic Button Temperature Sensor | ACI

Brand: ACI

SKU: A/1K-2W-PBS

$23.93

Jump to: Overview & Specifications Reviews

Overview Details for TSC0

TS sensors are ceiling-mounted in an unobtrusive housing. The easy to install units are ideal for office environments, as well as museums, galleries or any other open indoor setting. These sensors are highly accurate, reliable and come with a 5 years warranty.

Ceiling mount probe for more accurate readings, ideal for open office environments
Recessed press-fit sensor virtually disappears, great for museums and galleries

Specifications

Item Number	TSC0
Brand	Veris
Application Zone	Living Space
Application	Hospitals \| Labs \| Clean Rooms
Brand	Veris
Color	Cloud White
Dimension Depth	Installed: 0.6" (16 mm) \| Total: 2.7" (68 mm)
Dimension Height	2" (51 mm)
Dimension Width	2" (51 mm)
Electrical Wiring Size	22 AWG (0.32 mm²)
Enclosure Material	ABS Plastic
Measurement Type	Temperature
Model	TSC0
Mounting	Ceiling
Operating Temperature	-13 - 221 °F (-25 - 105 °C)
Outputs	Resistive output
Product Type	Sensor
Range	TS
Sensor Configuration	Ceiling
Sensor	Temperature
Temperature Calibration Certificate	None
Temperature Measurement Accuracy	±0.6 °F (±0.3 °C)
Temperature Measurement Range	32 - 122 °F (0 - 50 °C)
Temperature Sensor Type	1k Ohm Platinum RTD
Warranty	5 years
