TPH0 | Temp Economy Plate | 10k T3 | Veris

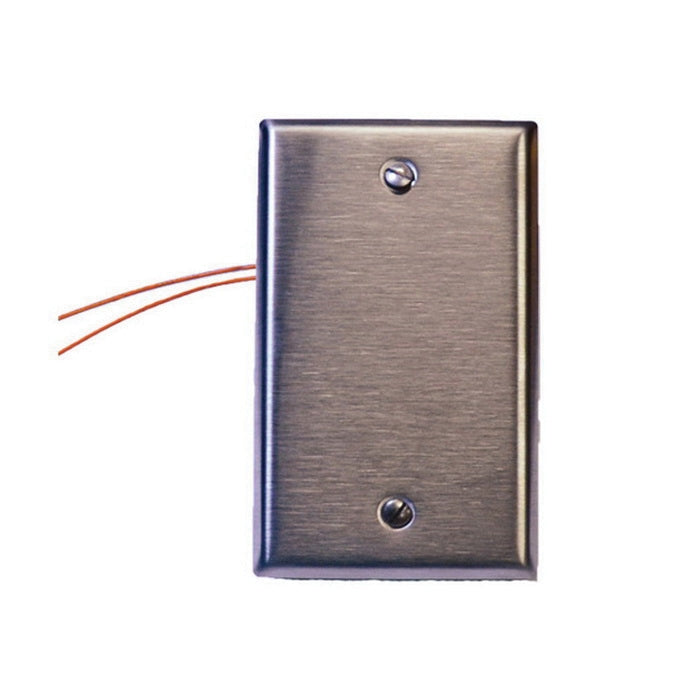

Brushed 430 Stainless Steel 10 kOhm T3 Thermistor NTC Temperature Sensor

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TPH0

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris TPH0 Documents

Datasheet Installation guide More Info

Overview

Details for TPH0

Temp Economy Plate | 10k T3

TP flush mounted temperature sensors are designed to monitor the temperature of the air in areas where sensor durability and security are needed. They are ideal for spaces where moisture and water vapor are concerns. The back of the TP is insulated to reduce interior wall temperature influence. The TP is for indoor use only, & it is warranted for a period of five years.

Specifications

Item Number	TPH0
Brand	Veris
Application Zone	Plant Room
Application	Wall
Brand	Veris
Dimension Depth	0.2" (5.1 mm)
Dimension Height	4.5" (115 mm)
Dimension Width	2.8" (72 mm)
Display Type	None
Electrical Wiring Size	22 AWG (0.32 mm²)
Enclosure Material	Brushed 430 Stainless Steel
Measurement Type	Temperature
Model	TPH0
Mounting	Wall
Operating Temperature	-13 - 221 °F (-25 - 105 °C)
Outputs	Resistive output
Override	No
Product Certification	CE
Product Type	Sensor
Range	TP
Sensor Configuration	Wall Plate
Sensor	Temperature
Setpoint	No
Temperature Calibration Certificate	None
Temperature Measurement Accuracy	±0.4 °F (±0.2 °C)
Temperature Measurement Range	32 - 158 °F (0 - 70 °C)
Temperature Sensor Type	10k Ohm Type 3 Thermistor
Warranty	5 years
