TPD0 | Temp Economy Plate | 10k T2 | Veris

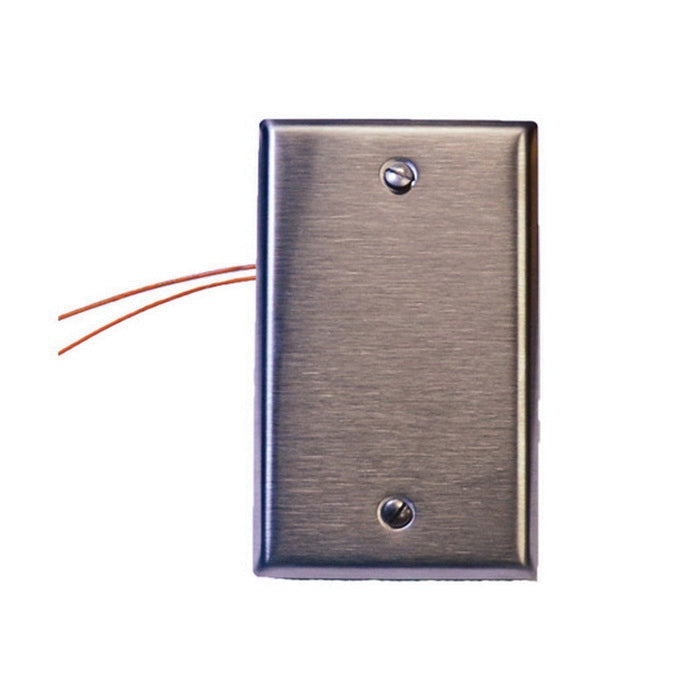

Brushed 430 Stainless Steel 10 kOhm T2 Thermistor NTC Temperature Sensor

Brand: VerisSKU: TPD0

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TPD0

Jump to: Overview & Specifications Reviews

Overview Details for TPD0

TP series flush mounted temperature sensors are designed to monitor the temperature of the air in areas where sensor durability and security are needed. They are ideal for spaces where moisture and water vapor are concerns. The back of the TP is insulated to reduce interior wall temperature influence. The TP is for indoor use only and it is warranted for a period of 5 years.

Moisture resistant - potted sensor element
Durable - stainless steel construction
Easy installation - mounts to standard duplex wall mount box
Flexible
Simple maintenance - easy to clean

Specifications

Item Number	TPD0
Brand	Veris
Application Zone	Plant Room
Application	Wall
Brand	Veris
Dimension Depth	0.2" (5.1 mm)
Dimension Height	4.5" (115 mm)
Dimension Width	2.8" (72 mm)
Display Type	None
Electrical Wiring Size	22 AWG (0.32 mm²)
Enclosure Material	Brushed 430 Stainless Steel
Measurement Type	Temperature
Model	TPD0
Mounting	Wall
Operating Temperature	-13 - 221 °F (-25 - 105 °C)
Outputs	Resistive output
Override	No
Product Certification	CE
Product Type	Sensor
Range	TP
Sensor Configuration	Wall Plate
Sensor	Temperature
Setpoint	No
Temperature Calibration Certificate	None
Temperature Measurement Accuracy	±1.8 °F (±1.0 °C)
Temperature Measurement Range	-58 - 302 °F (-50 - 150 °C)
Temperature Sensor Type	10k Ohm Type 2 Thermistor
Warranty	5 years
