TJBDR03 | Temp | VAV | 4 in SS Prb w/Plate | 10k T2 | 10ft | Veris

Stainless Steel Probe 4 in 10 kOhm T2 Thermistor VAV Discharge NTC Temperature Sensor, 10 ft Cable

Brand: VerisSKU: TJBDR03

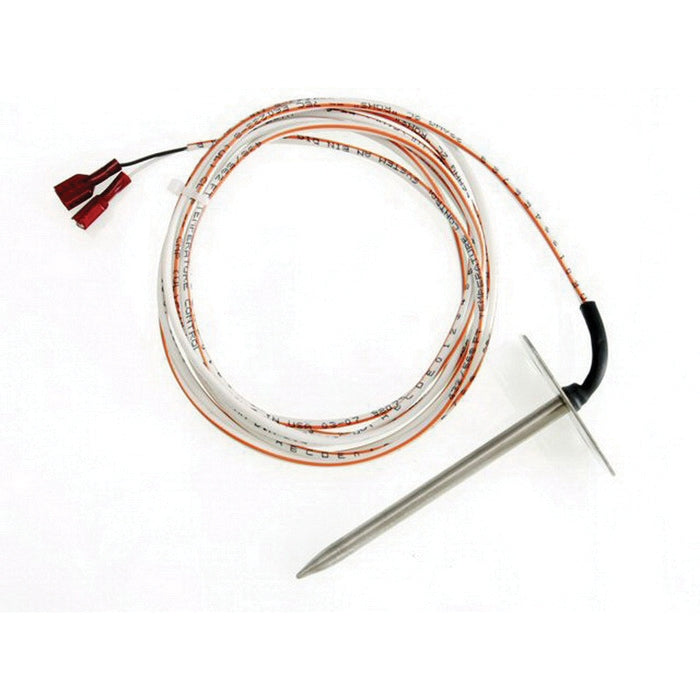

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TJBDR03

Jump to: Overview & Specifications Reviews

Overview Details for TJBDR03

The TJ series temperature sensors are highly accurate and cost effective, with trouble-free installation. The sensor is encased in a sturdy corrosion-resistant stainless steel probe. A variety of RTD/thermistor sensor and probe length options are available for maximum versatility in applications.

Easy installation - stainless steel duct probe with mounting flange
Installation ready for VAV systems and plenum areas, saves money on job commissioning and warranty service
2-wire installation (optional quick disconnect), installs in minutes
Plenum rated cable standard
Application flexibility - 4 in duct probes
Resistive output

Specifications

Item Number	TJBDR03
Brand	Veris
Application Zone	Plant Room
Application	VAV Box
Brand	Veris
Dimension Depth	0.5" (13 mm)
Dimension Height	2" (51 mm)
Dimension Probe Diameter	0.25" (6 mm)
Dimension Probe Length	4" (102 mm)
Dimension Width	1.5" (38 mm)
Electrical Wiring Size	22 AWG (0.32 mm²)
Enclosure Material	Stainless Steel
Measurement Type	Temperature
Model	TJBDR03
Mounting	Duct
Operating Temperature	-13 - 221 °F (-25 - 105 °C)
Outputs	Resistive output
Product Type	Sensor
Range	TJ
Sensor Configuration	Duct Only
Sensor Length	4 inch
Sensor	Temperature
Temperature Calibration Certificate	3 pts
Temperature Measurement Accuracy	±1.8 °F (±1.0 °C)
Temperature Measurement Range	-58 - 302 °F (-50 - 150 °C)
Temperature Sensor Type	10k Ohm Type 2 Thermistor
Warranty	5 years
