TJBDR00 | Temp | VAV | 4 In SS Probe w/Plate | 10k T2 | Veris

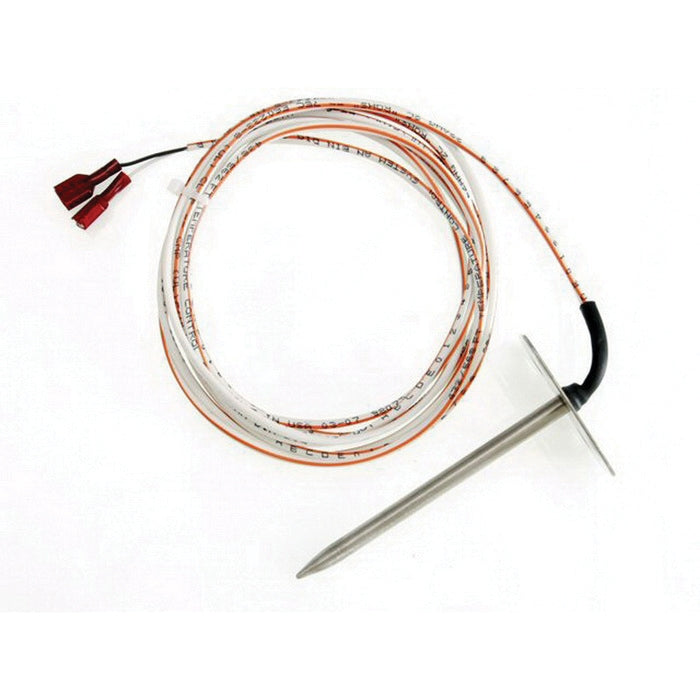

Stainless Steel Probe 4 in 10 kOhm T2 Thermistor VAV Discharge NTC Temperature Sensor, 5 ft Cable
Documents and manuals
Veris TJBDR00 Documents
Overview
Details for TJBDR00
Temp | VAV | 4 In SS Probe w/Plate | 10k T2
Features
- Stainless steel duct probe with mounting flange...quick, easy installation
- Plenum rated cable standard
- 4” or 8” (102 mm or 204 mm) duct probes for application flexibility
- 2-wire installation (optional quick disconnect)...installs in just a few short minutes
- Installation ready for VAV systems and plenum areas...saves money on job commissioning and warranty service
Description
The TJ Series temperature sensors are highly accurate and cost effective, with trouble-free installation. The sensor is encased in a sturdy corrosion-resistant stainless steel probe. A variety of RTD/ thermistor sensor and probe length options are available for maximum versatility in applications.
Application
- VAV reheat boxes
- Dual duct boxes
- Fan coils
- Prove that the hot water valve or electric heat is functioning properly
- Check individual reheating stages
- Check for hot water valve leaks
- Determine if damper actuators are functioning on dual duct boxes
Specifications
Wiring 22 AWG; 2-wire: RTD/Thermistor
Probe Stainless Steel
Operating Temp -25° to 105°C (-13° to 221°F)*
LINITEMP OPTION
Input Power Class 2; 5 to 30VDC
Output 10mV/°C
Operating Temp -25° to 105°C (-13° to 221°F)
Calibration Error 1.5°C (2.7°F) typical; 2.5°C (4.5°F) max. at 25°C (77°F)*
Error over Temp 1.8°C (3.24°F) typical; 3.0°C (5.4°F) max. over 0° to 70°C (32° to 158°F) range; 2.0°C (3.6°F) typical, 3.5°C (6.3°F) max. over -25° to 105°C (-13° to 221°F) range
Specifications
Item Number | TJBDR00 |
Brand | Veris |
Application Zone | Plant Room |
Application | VAV Box |
Brand | Veris |
Dimension Depth | 0.5" (13 mm) |
Dimension Height | 2" (51 mm) |
Dimension Probe Diameter | 0.25" (6 mm) |
Dimension Probe Length | 4" (102 mm) |
Dimension Width | 1.5" (38 mm) |
Electrical Wiring Size | 22 AWG (0.32 mm²) |
Enclosure Material | Stainless Steel |
Measurement Type | Temperature |
Model | TJBDR00 |
Mounting | Duct |
Operating Temperature | -13 - 221 °F (-25 - 105 °C) |
Outputs | Resistive output |
Product Type | Sensor |
Range | TJ |
Sensor Configuration | Duct Only |
Sensor Length | 4 inch |
Sensor | Temperature |
Temperature Calibration Certificate | None |
Temperature Measurement Accuracy | ±1.8 °F (±1.0 °C) |
Temperature Measurement Range | -58 - 302 °F (-50 - 150 °C) |
Temperature Sensor Type | 10k Ohm Type 2 Thermistor |
Warranty | 5 years |
