TIWB1H0 | Temp | Imrsn | Wtight | 4 in | Thermowell | 10k T3 | Veris

Stainless Steel Probe 4 in 10 kOhm T3 Thermistor NTC Immersion Temperature Sensor with 3 in Thermowell, Water Resistant Housing Enclosure

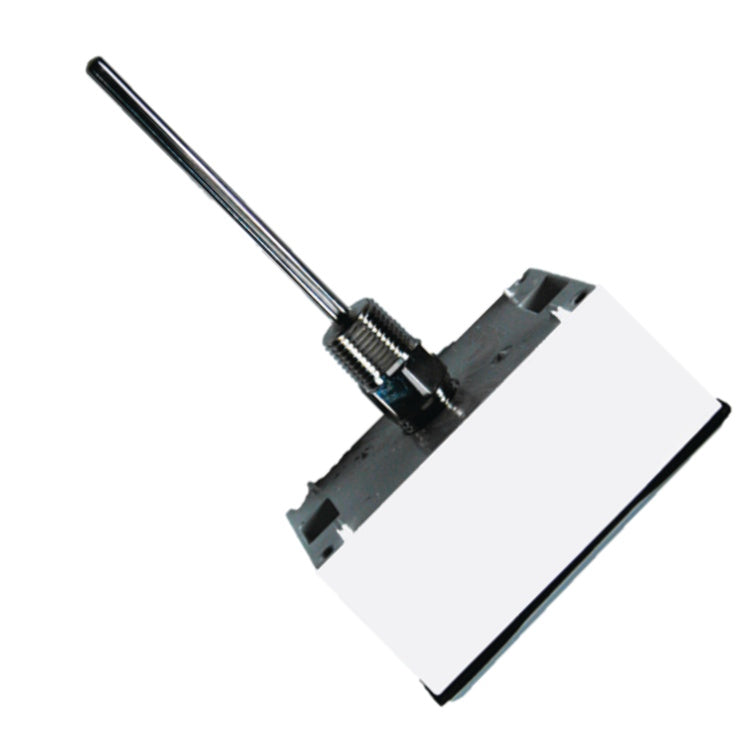

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TIWB1H0

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris TIWB1H0 Documents

Datasheet Installation Guide More Info

Overview

Details for TIWB1H0

Description

These immersion probe type temperature sensors are both highly accurate and cost effective. Installation could not be easier. The sensor is encased in a corrosion-resistant stainless steel probe for durability, with a choice of service entry body, indoor junction box, or threaded enclosures. A variety of RTD or thermistor sensor options and probe lengths are available for maximum application versatility.

APPLICATIONS

Tanks
Pipes
Chillers

Specifications

Item Number	TIWB1H0
Brand	Veris
Application Zone	Plant Room
Application	Pipe \| Immersion
Brand	Veris
Dimension Depth	2" (51 mm)
Dimension Height	4.6" (117 mm)
Dimension Probe Diameter	0.25" (6 mm) with 1/2" NPT thread at base
Dimension Probe Length	5" (127 mm)
Dimension Thermowell Diameter	0.375" (10 mm)
Dimension Thermowell Length	4" (102 mm)
Dimension Thermowell Mounting Thread	1/2" NPT
Dimension Width	2.9" (74 mm)
Electrical Wiring Size	22 AWG (0.32 mm²)
Enclosure Material	Aluminum Box; Stainless Steel Cover
Measurement Type	Temperature
Model	TIWB1H0
Mounting	Pipe with Water Resistant Housing
Operating Temperature	-13 - 221 °F (-25 - 105 °C)
Outputs	Resistive output
Product Type	Sensor
Range	TI
Sensor Configuration	Immersion
Sensor Length	4 inch
Sensor	Temperature
Temperature Calibration Certificate	None
Temperature Measurement Accuracy	±0.4 °F (±0.2 °C)
Temperature Measurement Range	32 - 158 °F (0 - 70 °C)
Temperature Sensor Type	10k Ohm Type 3 Thermistor
Thermowell	Included
Warranty	5 years
