TIGC1H0 | Temp | Immersion | SrvcBdy | 6" | Thermowell | 10k T3 | Veris

Stainless Steel Probe 6 in 10 kOhm T3 Thermistor NTC Immersion Temperature Sensor with 5 in Thermowell, Service Entry Body Enclosure

Brand: VerisSKU: TIGC1H0
Veris | TIGC1H0

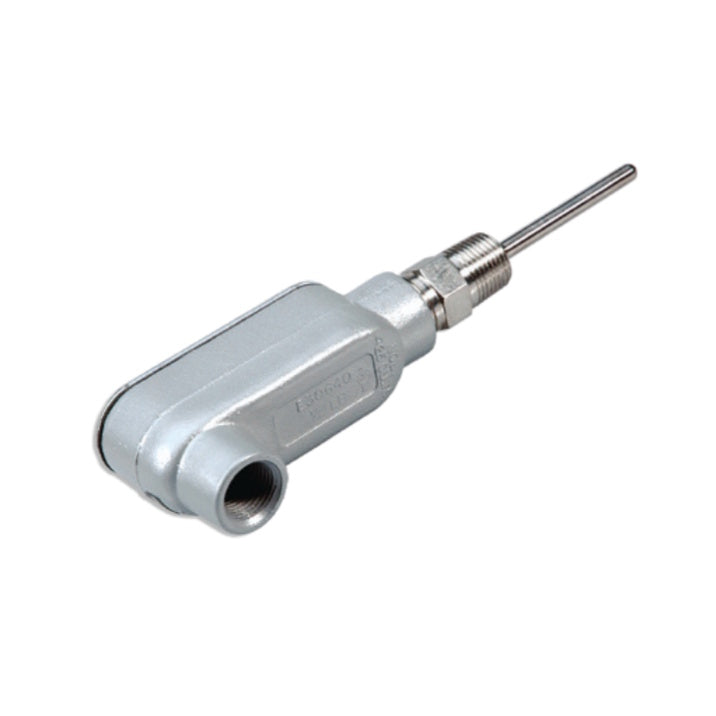

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TIGC1H0

Overview Details for TIGC1H0

These immersion probe type temperature sensors are both highly accurate and cost effective. Installation could not be easier. The sensor is encased in a corrosion-resistant stainless steel probe for durability, with a choice of service entry body, indoor junction box, or threaded enclosures. A variety of RTD or thermistor sensor options and probe lengths are available for maximum application versatility.

  • Durable - corrosion resistant stainless steel probe design
  • Easy selection - 1/2 in NPT threads standard
  • Cost-effective, high accuracy thermistors/RTDs
  • Service entry body enclosure

Specifications

Item Number TIGC1H0
Brand Veris
Application Zone Plant Room
Application Pipe | Immersion
Brand Veris
Dimension Depth 2.1" (53 mm)
Dimension Height 4.3" (109 mm)
Dimension Probe Diameter 0.25" (6 mm) with 1/2" NPT thread at base
Dimension Probe Length 7" (178 mm)
Dimension Thermowell Diameter 0.375" (10 mm)
Dimension Thermowell Length 6" (152 mm)
Dimension Thermowell Mounting Thread 1/2" NPT
Dimension Width 1.3" (33 mm)
Electrical Wiring Size 22 AWG (0.32 mm²)
Enclosure Material Aluminum Box; Stainless Steel Cover
Measurement Type Temperature
Model TIGC1H0
Mounting Pipe with Service Body
Operating Temperature -13 - 221 °F (-25 - 105 °C)
Outputs Resistive output
Product Type Sensor
Range TI
Sensor Configuration Immersion
Sensor Length 6 inch
Sensor Temperature
Temperature Calibration Certificate None
Temperature Measurement Accuracy ±0.4 °F (±0.2 °C)
Temperature Measurement Range 32 - 158 °F (0 - 70 °C)
Temperature Sensor Type 10k Ohm Type 3 Thermistor
Thermowell Included
Warranty 5 years
