TIGA1D0 | Stainless Steel Probe 2-1/2 in 10 kOhm T2 Thermistor NTC Immersion Temperature Sensor with 1-1/2 in Thermowell, Service Entry Body Enclosure | Veris
Stainless Steel Probe 3-1/2 in 10 kOhm T2 Thermistor NTC Immersion Temperature Sensor with 1-1/2 in Thermowell, Service Entry Body Enclosure

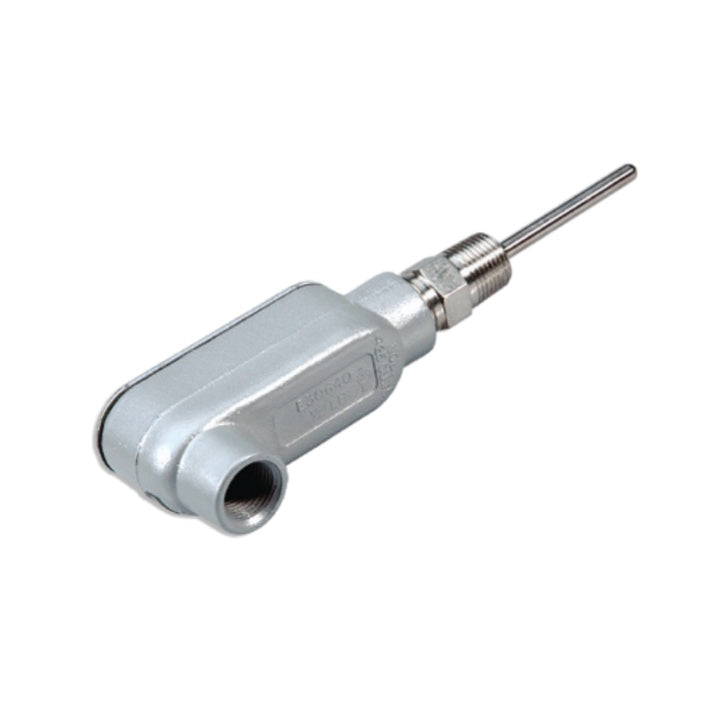

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TIGA1D0
Overview Details for TIGA1D0
These immersion probe type temperature sensors are both highly accurate and cost effective. Installation could not be easier. The sensor is encased in a corrosion-resistant stainless steel probe for durability, with a choice of service entry body, indoor junction box, or threaded enclosures. A variety of RTD or thermistor sensor options and probe lengths are available for maximum application versatility.
- Durable - corrosion resistant stainless steel probe design
- Easy selection - 1/2 in NPT threads standard
- Cost-effective, high accuracy thermistors/RTDs
- Service entry body enclosure
Specifications
| Item Number | TIGA1D0 |
| Brand | Veris |
| Application Zone | Plant Room |
| Application | Pipe | Immersion |
| Brand | Veris |
| Dimension Depth | 2.1" (53 mm) |
| Dimension Height | 4.3" (109 mm) |
| Dimension Probe Diameter | 0.25" (6 mm) with 1/2" NPT thread at base |
| Dimension Probe Length | 3.5" (89 mm) |
| Dimension Thermowell Diameter | 0.375" (10 mm) |
| Dimension Thermowell Length | 3.5" (64 mm) |
| Dimension Thermowell Mounting Thread | 1/2" NPT |
| Dimension Width | 1.3" (33 mm) |
| Electrical Wiring Size | 22 AWG (0.32 mm²) |
| Enclosure Material | Aluminum Box; Stainless Steel Cover |
| Measurement Type | Temperature |
| Model | TIGA1D0 |
| Mounting | Pipe with Service Body |
| Operating Temperature | -13 - 221 °F (-25 - 105 °C) |
| Outputs | Resistive output |
| Product Type | Sensor |
| Range | TI |
| Sensor Configuration | Immersion |
| Sensor Length | 3.5 inch |
| Sensor | Temperature |
| Temperature Calibration Certificate | None |
| Temperature Measurement Accuracy | ±1.8 °F (±1.0 °C) |
| Temperature Measurement Range | -58 - 302 °F (-50 - 150 °C) |
| Temperature Sensor Type | 10k Ohm Type 2 Thermistor |
| Thermowell | Not Included |
| Warranty | 5 years |
