TIDC1K0 | Temp | Immersion | Duct | 6" | Thermowell | 10k w/11kS | Veris (OBSOLETE)
Stainless Steel Probe 6 in 10 kOhm with 11 kOhm Shunt Thermistor Immersion Temperature Sensor with 5 in Thermowell, Duct Enclosure

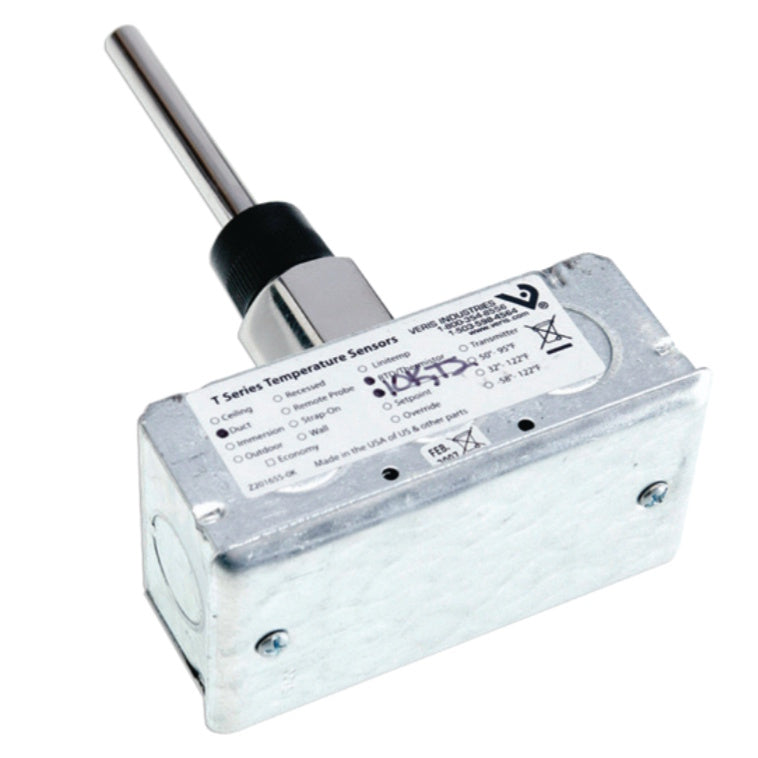

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TIDC1K0
Overview Details for TIDC1K0
DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS
These immersion probe type temperature sensors are both highly accurate and cost effective. Installation could not be easier. The sensor is encased in a corrosion-resistant stainless steel probe for durability, with a choice of service entry body, indoor junction box, or threaded enclosures. A variety of RTD or thermistor sensor options and probe lengths are available for maximum application versatility.
- Durable - corrosion resistant stainless steel probe design
- Easy selection - 1/2 in NPT threads standard
- Cost-effective, high accuracy thermistors/RTDs
- Duct enclosure
Specifications
| Item Number | TIDC1K0 |
| Brand | Veris |
| Application Zone | Plant Room |
| Application | Pipe | Immersion |
| Brand | Veris |
| Dimension Depth | 1.8" (44 mm) |
| Dimension Height | 4" (102 mm) |
| Dimension Probe Diameter | 0.25" (6 mm) with 1/2" NPT thread at base |
| Dimension Probe Length | 7" (178 mm) |
| Dimension Thermowell Diameter | 0.375" (10 mm) |
| Dimension Thermowell Length | 6" (152 mm) |
| Dimension Thermowell Mounting Thread | 1/2" NPT |
| Dimension Width | 2.2" (56 mm) |
| Electrical Wiring Size | 22 AWG (0.32 mm²) |
| Enclosure Material | Galvanized Steel |
| Measurement Type | Temperature |
| Model | TIDC1K0 |
| Mounting | Pipe with Mounting Box |
| Operating Temperature | -13 - 221 °F (-25 - 105 °C) |
| Outputs | Resistive output |
| Product Type | Sensor |
| Range | TI |
| Sensor Configuration | Immersion |
| Sensor Length | 6 inch |
| Sensor | Temperature |
| Temperature Calibration Certificate | None |
| Temperature Measurement Accuracy | ±0.4 °F (±0.2 °C) |
| Temperature Measurement Range | 32 - 158 °F (0 - 70 °C) |
| Temperature Sensor Type | 10k Ohm Thermistor w/11k Ohm Shunt |
| Thermowell | Included |
| Warranty | 5 years |
