TIDB1K0 | Temp | Imrsn | Duct | 4 in | Thmwl | 10k w/11kS | Veris

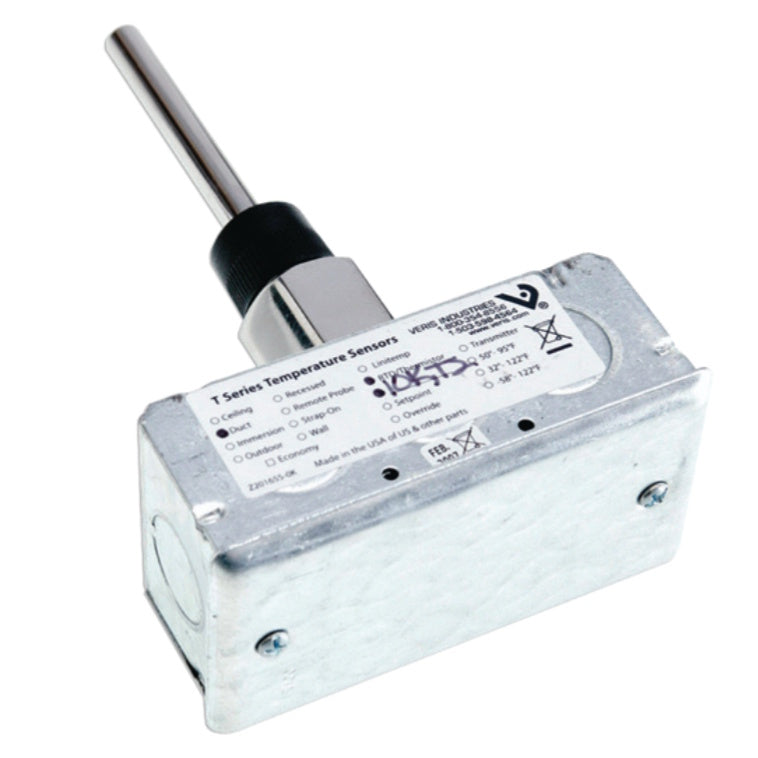

Stainless Steel Probe 4 in 10 kOhm with 11 kOhm Shunt Thermistor Immersion Temperature Sensor with 3 in Thermowell, Duct Enclosure

Brand: VerisSKU: TIDB1K0

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TIDB1K0

Jump to: Overview & Specifications Reviews

Overview Details for TIDB1K0

These immersion probe type temperature sensors are both highly accurate and cost effective. Installation could not be easier. The sensor is encased in a corrosion-resistant stainless steel probe for durability, with a choice of service entry body, indoor junction box, or threaded enclosures. A variety of RTD or thermistor sensor options and probe lengths are available for maximum application versatility.

Durable - corrosion resistant stainless steel probe design
Easy selection - 1/2 in NPT threads standard
Cost-effective, high accuracy thermistors/RTDs
Duct enclosure

Specifications

Item Number	TIDB1K0
Brand	Veris
Application Zone	Plant Room
Application	Pipe \| Immersion
Brand	Veris
Dimension Depth	1.8" (44 mm)
Dimension Height	4" (102 mm)
Dimension Probe Diameter	0.25" (6 mm) with 1/2" NPT thread at base
Dimension Probe Length	5" (127 mm)
Dimension Thermowell Diameter	0.375" (10 mm)
Dimension Thermowell Length	4" (102 mm)
Dimension Thermowell Mounting Thread	1/2" NPT
Dimension Width	2.2" (56 mm)
Electrical Wiring Size	22 AWG (0.32 mm²)
Enclosure Material	Galvanized Steel
Measurement Type	Temperature
Model	TIDB1K0
Mounting	Pipe with Mounting Box
Operating Temperature	-13 - 221 °F (-25 - 105 °C)
Outputs	Resistive output
Product Type	Sensor
Range	TI
Sensor Configuration	Immersion
Sensor Length	4 inch
Sensor	Temperature
Temperature Calibration Certificate	None
Temperature Measurement Accuracy	±0.4 °F (±0.2 °C)
Temperature Measurement Range	32 - 158 °F (0 - 70 °C)
Temperature Sensor Type	10k Ohm Thermistor w/11k Ohm Shunt
Thermowell	Included
Warranty	5 years
