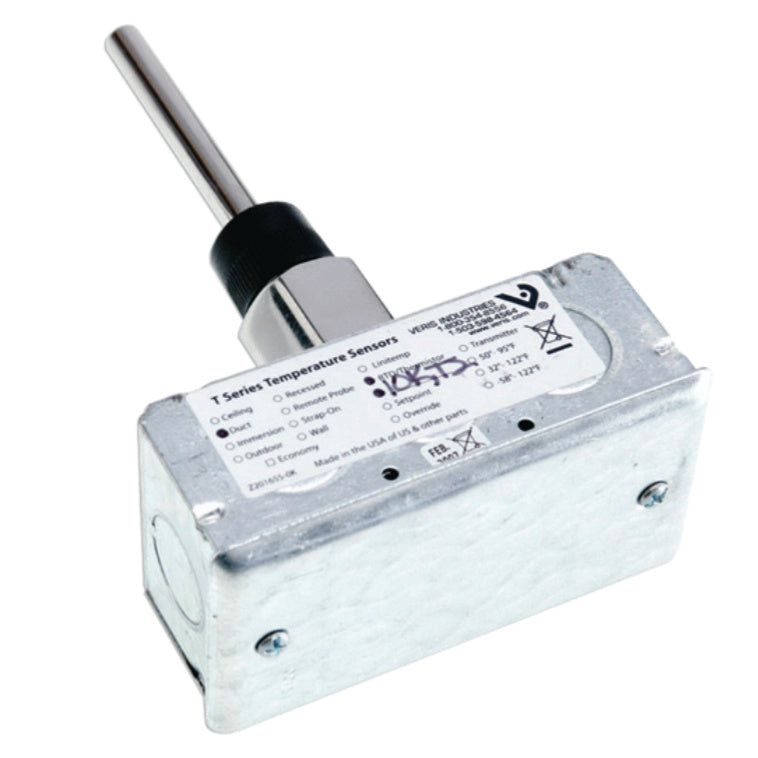

TIDA1H0 | Temp | Immersion | Duct | 3-1/2" | Thermowell | 10k T3 | Veris

Stainless Steel Probe 3-1/2 in 10 kOhm T3 Thermistor NTC Immersion Temperature Sensor with 1-1/2 in Thermowell, Duct Enclosure

Brand: VerisSKU: TIDA1H0
Veris | TIDA1H0
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to TIDA1H0
Jump to: Overview & Specifications Reviews

Overview Details for TIDA1H0

These immersion probe type temperature sensors are both highly accurate and cost effective. Installation could not be easier. The sensor is encased in a corrosion-resistant stainless steel probe for durability, with a choice of service entry body, indoor junction box, or threaded enclosures. A variety of RTD or thermistor sensor options and probe lengths are available for maximum application versatility.

  • Durable - corrosion resistant stainless steel probe design
  • Easy selection - 1/2 in NPT threads standard
  • Cost-effective, high accuracy thermistors/RTDs
  • Duct enclosure

Specifications

Item Number TIDA1H0
Brand Veris
Application Zone Plant Room
Application Pipe | Immersion
Brand Veris
Dimension Depth 1.8" (44 mm)
Dimension Height 4" (102 mm)
Dimension Probe Diameter 0.25" (6 mm) with 1/2" NPT thread at base
Dimension Probe Length 3.5" (89 mm)
Dimension Thermowell Diameter 0.375" (10 mm)
Dimension Thermowell Length 3.5" (64 mm)
Dimension Thermowell Mounting Thread 1/2" NPT
Dimension Width 2.2" (56 mm)
Electrical Wiring Size 22 AWG (0.32 mm²)
Enclosure Material Galvanized Steel
Measurement Type Temperature
Model TIDA1H0
Mounting Pipe with Mounting Box
Operating Temperature -13 - 221 °F (-25 - 105 °C)
Outputs Resistive output
Product Type Sensor
Range TI
Sensor Configuration Immersion
Sensor Length 3.5 inch
Sensor Temperature
Temperature Calibration Certificate None
Temperature Measurement Accuracy ±0.4 °F (±0.2 °C)
Temperature Measurement Range 32 - 158 °F (0 - 70 °C)
Temperature Sensor Type 10k Ohm Type 3 Thermistor
Thermowell Included
Warranty 5 years
